The new generation of auxiliary heaters from Webasto!

Webasto 'Thermo Top EVO 4 Diesel' - 1314816B

Standard installation kit - 1314818D

Control element: Set remote control T100 HTM - 1314637A

4 KW; 12V

No TÜV approval necessary - EC type approval available!

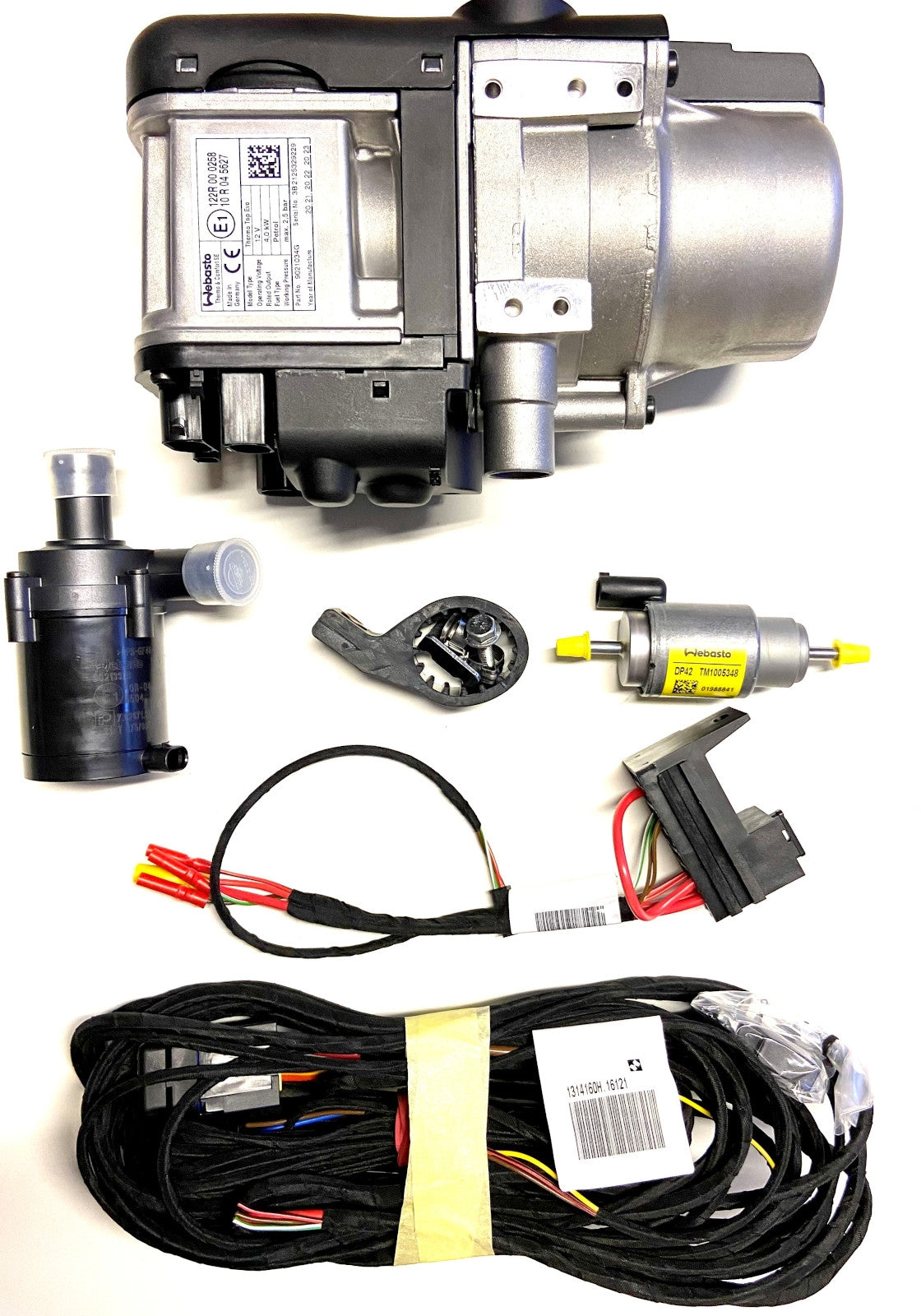

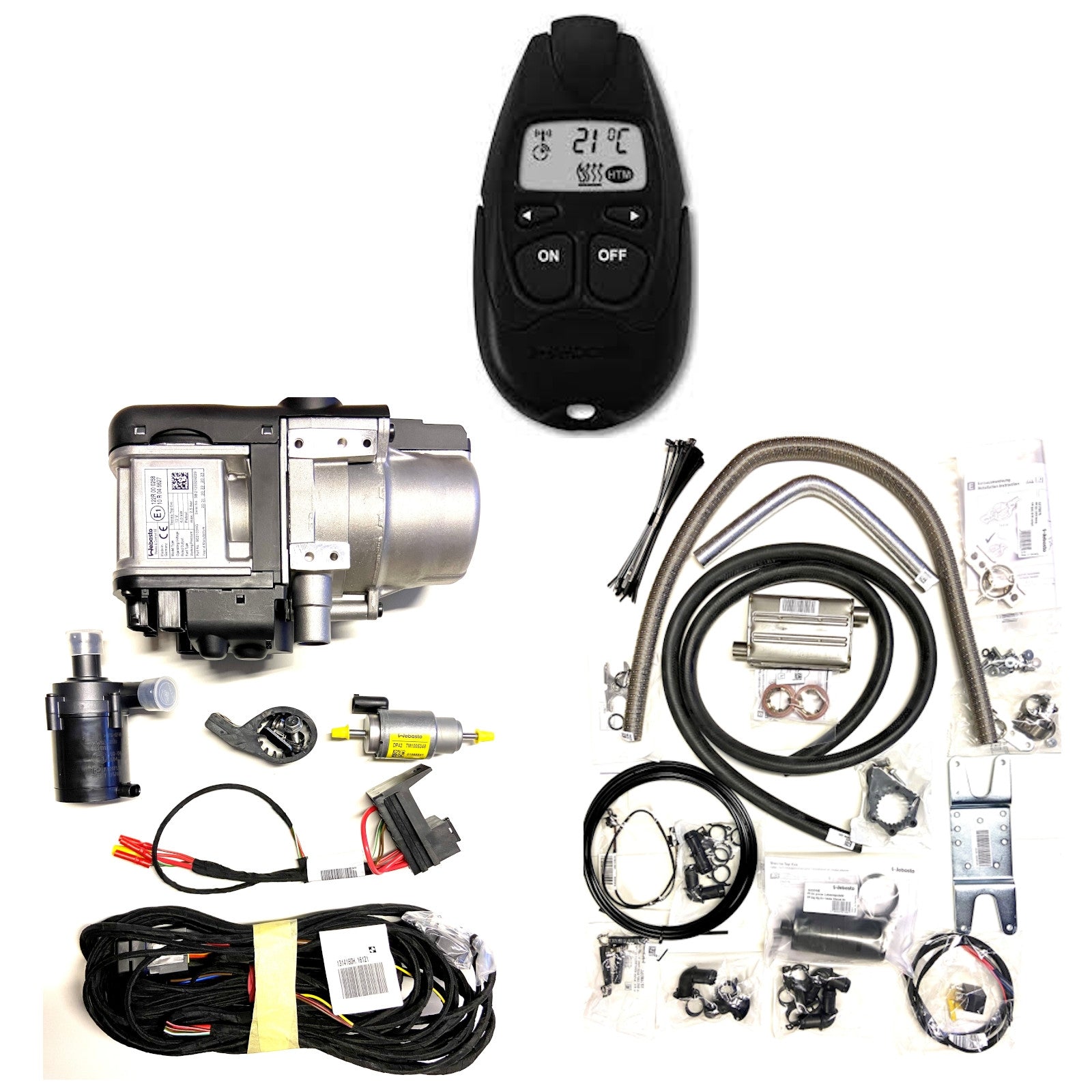

Scope of delivery:

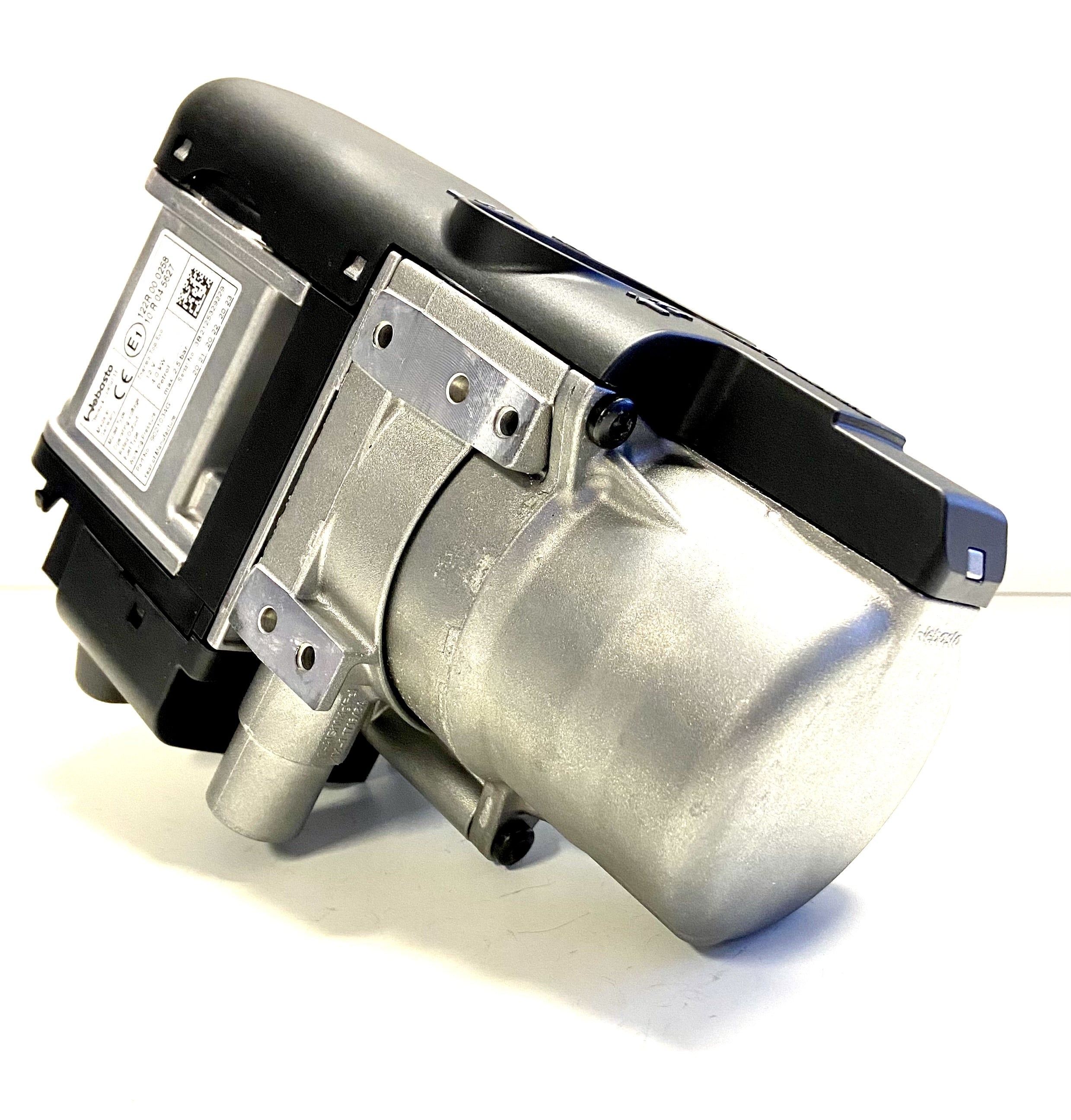

Heater Thermo Top EVO 4 KW Diesel

circulation pump (U4847 econ)

bag with dosing pump and accessories

main wiring harness

relay/fuse holder

documentation

(universal installation instructions, operating instructions, warranty certificate, EC type approval)

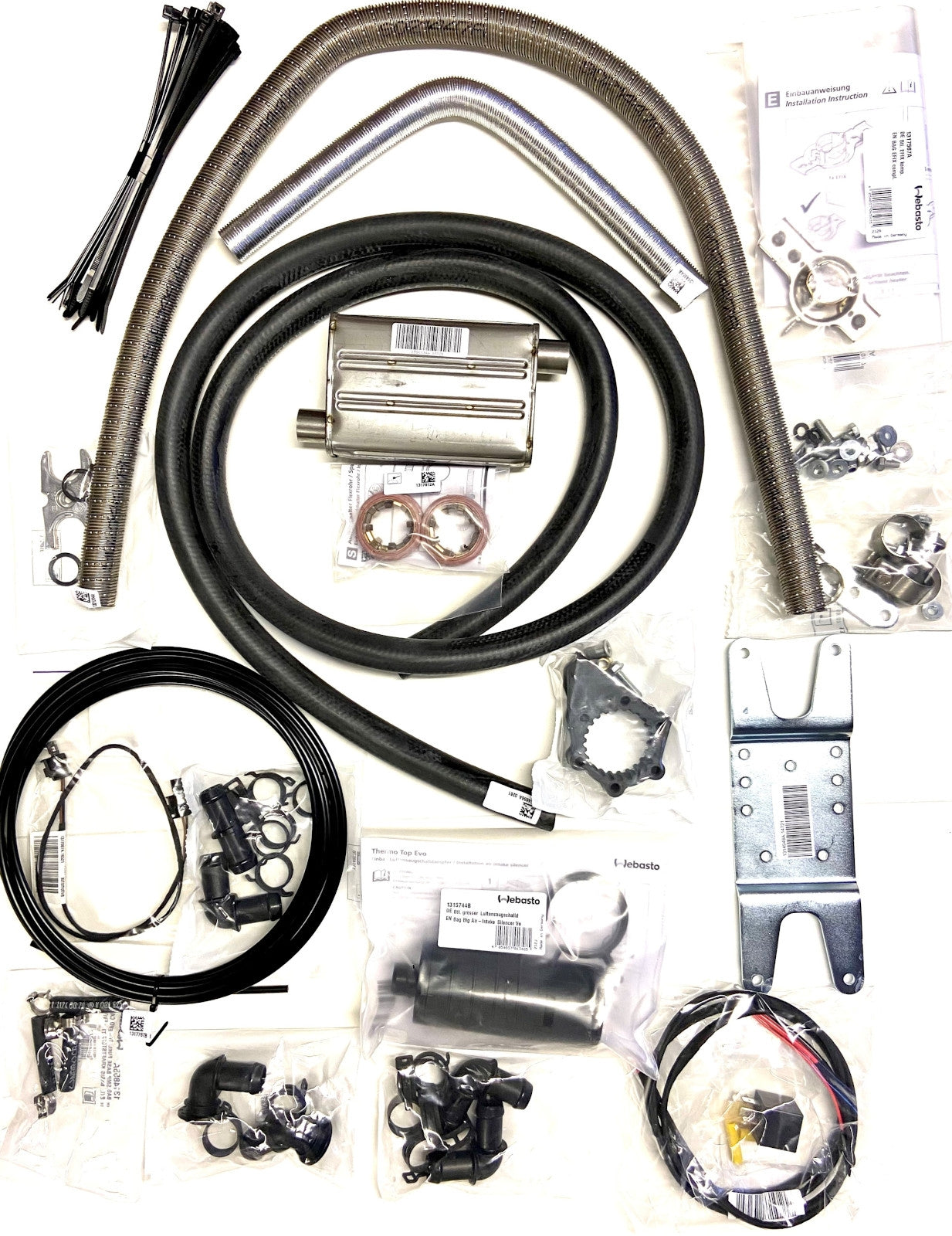

Standard installation kit:

bag with dosing pump holder

bag holder plate water nozzle

bag basic parts water

bag water nozzle (2x 90°)

water hose (2m)

bag of basic fuel

fuel hose

bag air intake silencer

air intake pipe (400mm)

exhaust silencer 22mm

bag base exhaust

flexible exhaust pipe (1m)

cable for water pump (400mm)

bag blower control

bag basic mechanics

standard holder

cable ties (30 pieces)

(no tank extractor/T-piece is included in delivery!)

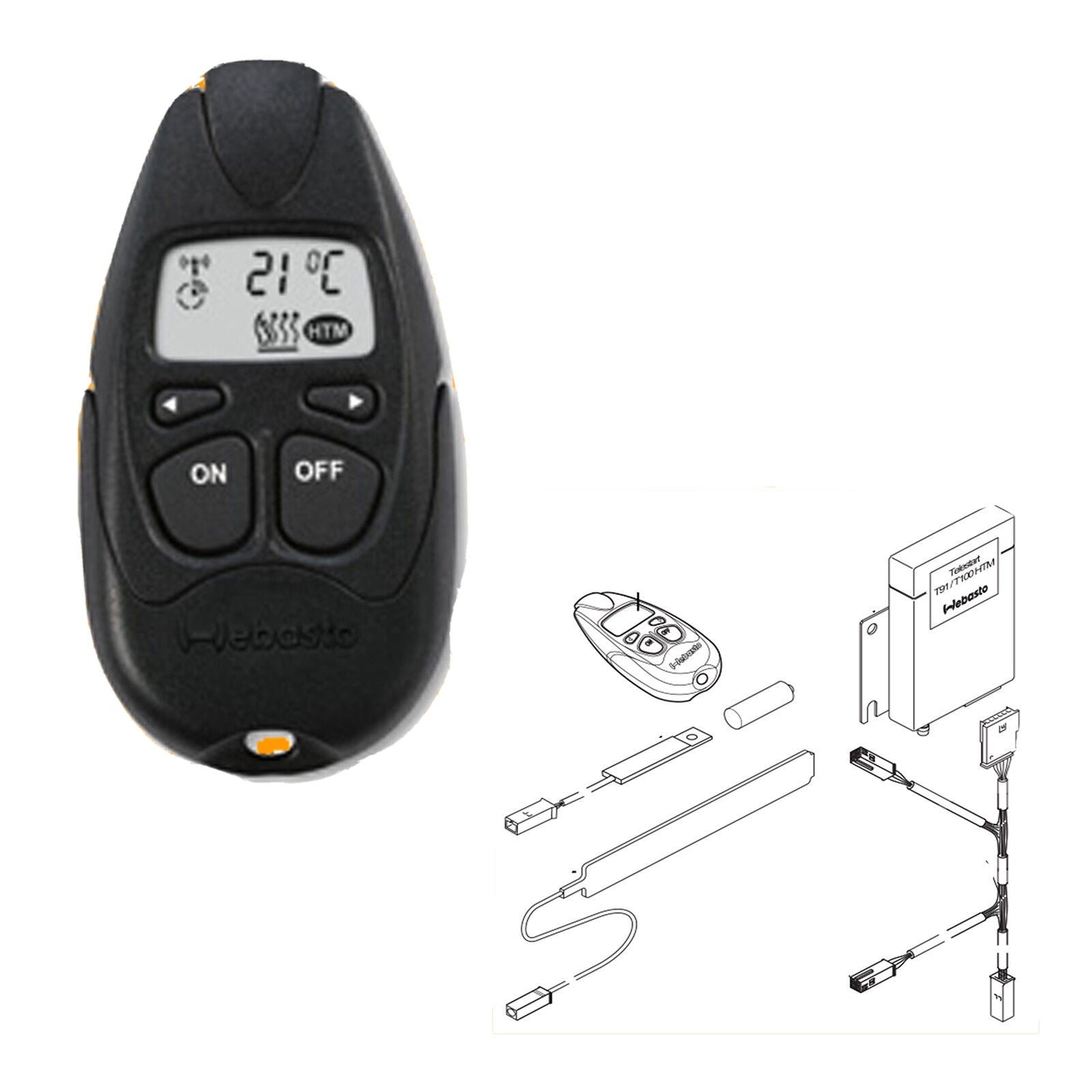

radio remote control T100 HTM Set

1x handheld transmitter, battery, receiver, antenna, mounting bracket, connection cable, temperature sensor

The most important advantages of the Telestart T100 HTM at a glance:

This intelligent remote control with a range of up to 1,000 meters calculates and checks the time when the heater should switch on depending on the current ambient temperature. All you have to do is set the desired departure time.

Webasto may offer vehicle-specific installation instructions and therefore a vehicle-specific installation kit for your vehicle. This specific kit makes installation easier and shortens the installation time.

We would be happy to check for you whether Webasto offers such a kit for your vehicle.

ATTENTION: There may be delivery times for the vehicle-specific kits from Webasto! Please enquire in good time!

When making an inquiry, we require the following information:

- Key numbers for 2.1 and 2.2 from the FZ certificate

- Type of air conditioning (automatic or manual air conditioning)

- Manual or automatic transmission

Advantages of the new Webasto generation:

- little space required due to small dimensions

(218 x 91 x 147 mm)

- low weight

(2.1 kg)

- stable and efficient heating performance even at low vehicle electrical system voltage

- two-stage undervoltage shutdown

The undervoltage shutdown is triggered by two different limit values during the start-up phase and in the subsequent heating operation. This enables the heating to operate and at the same time ensures that the vehicle engine starts.

- improved heating performance

- quick defrosting of the windows

(approx. 5 minutes faster than the previous model)
