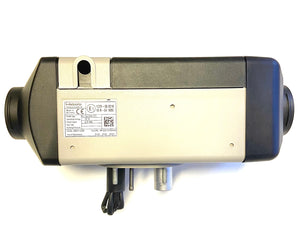

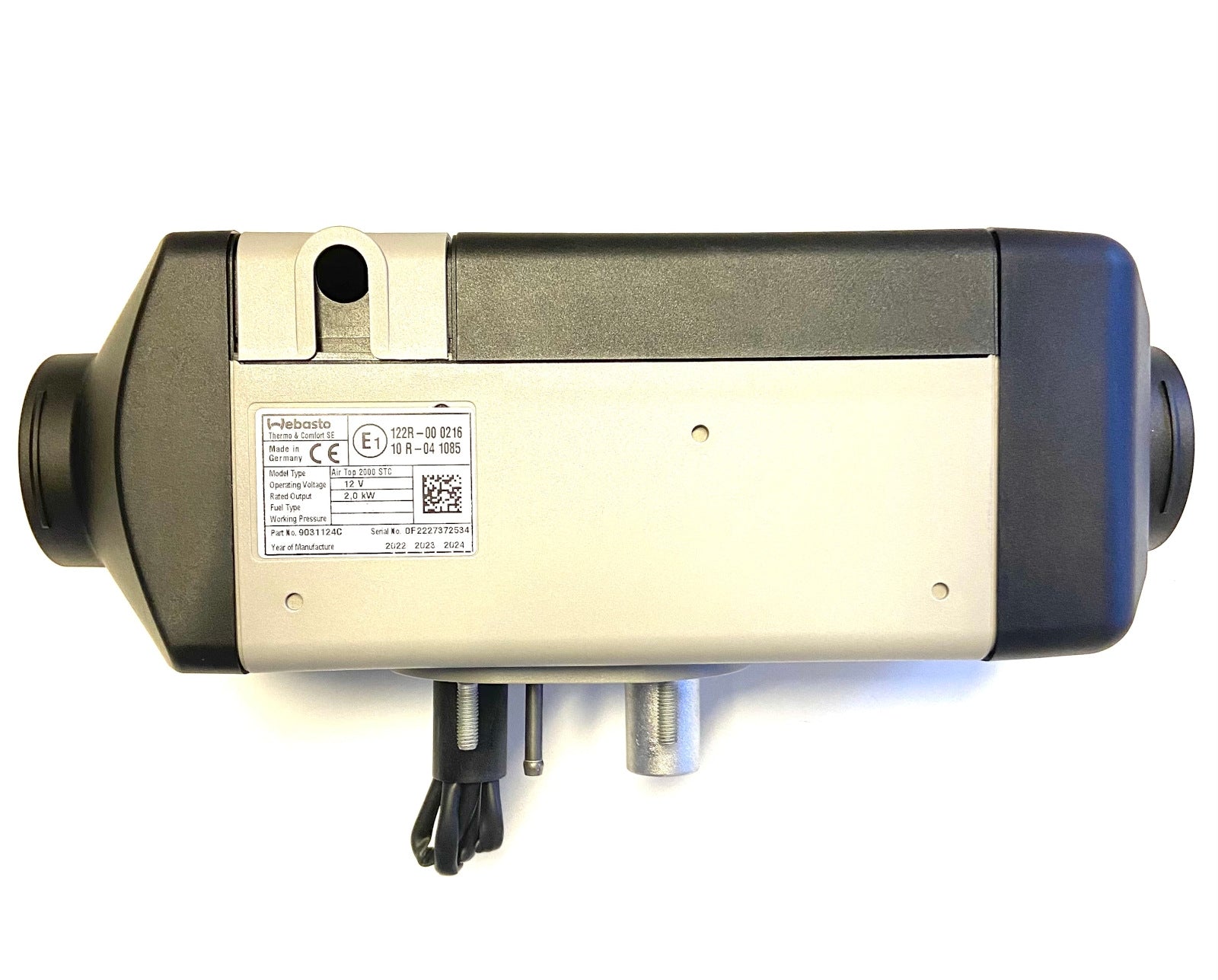

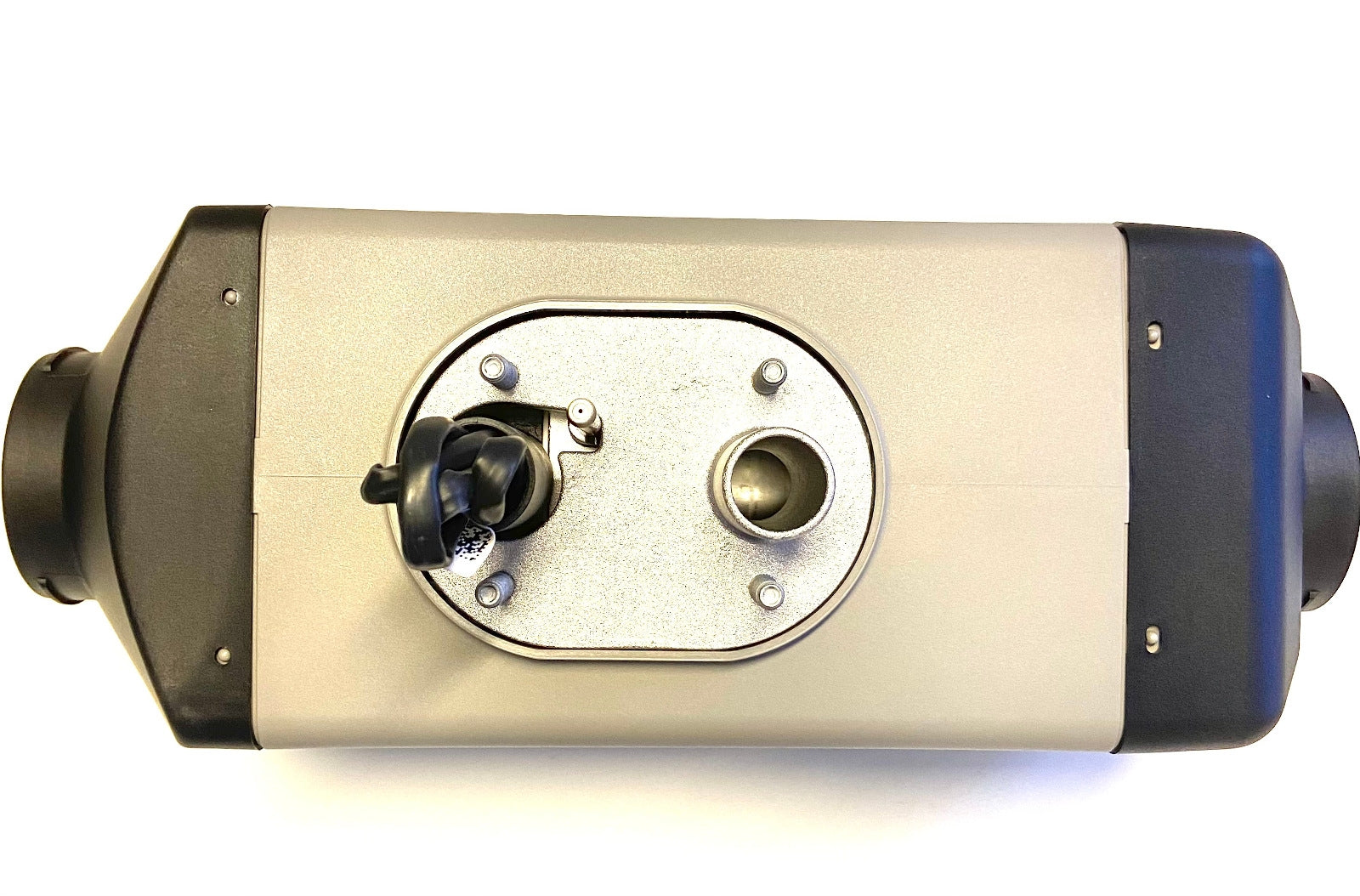

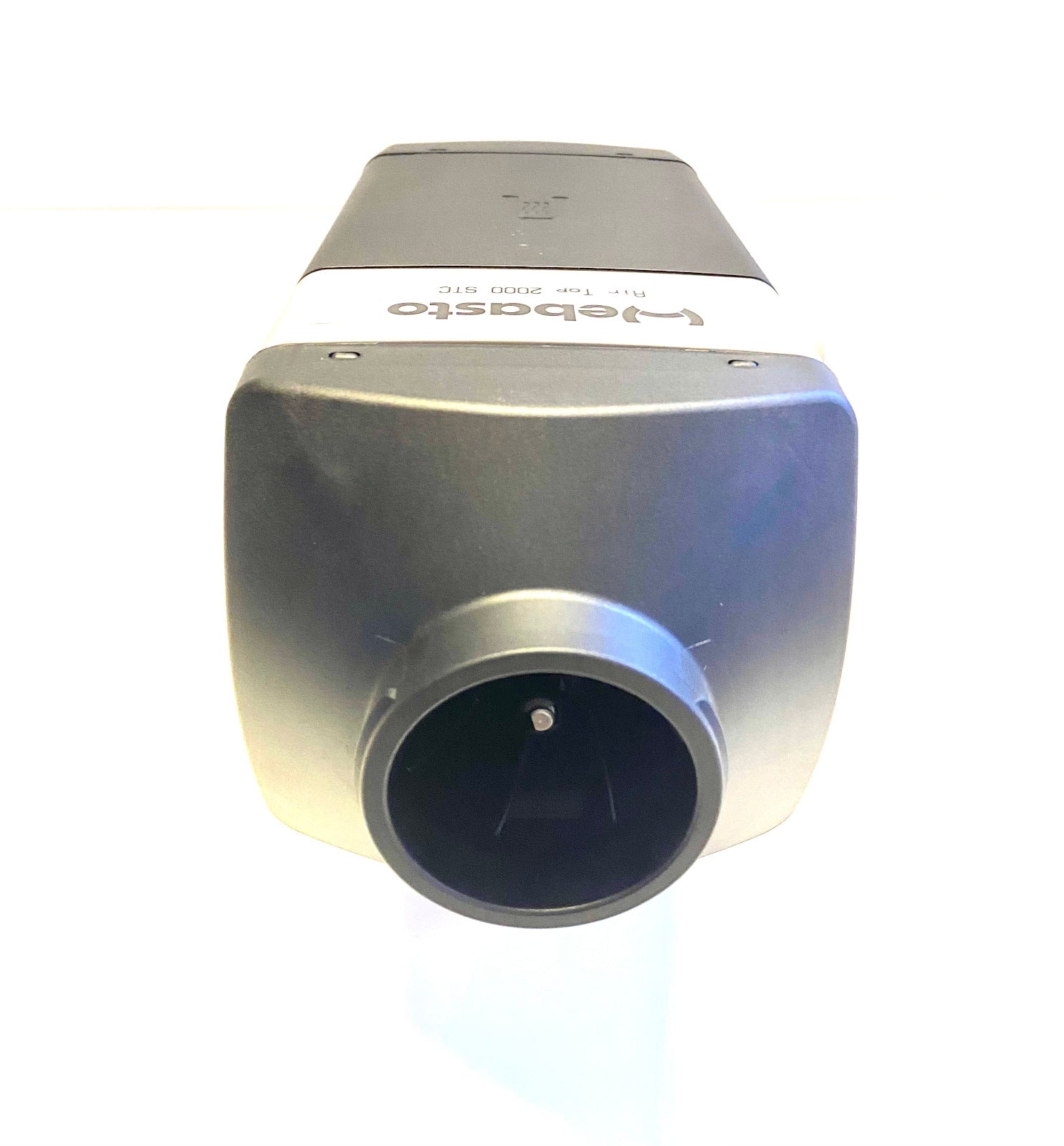

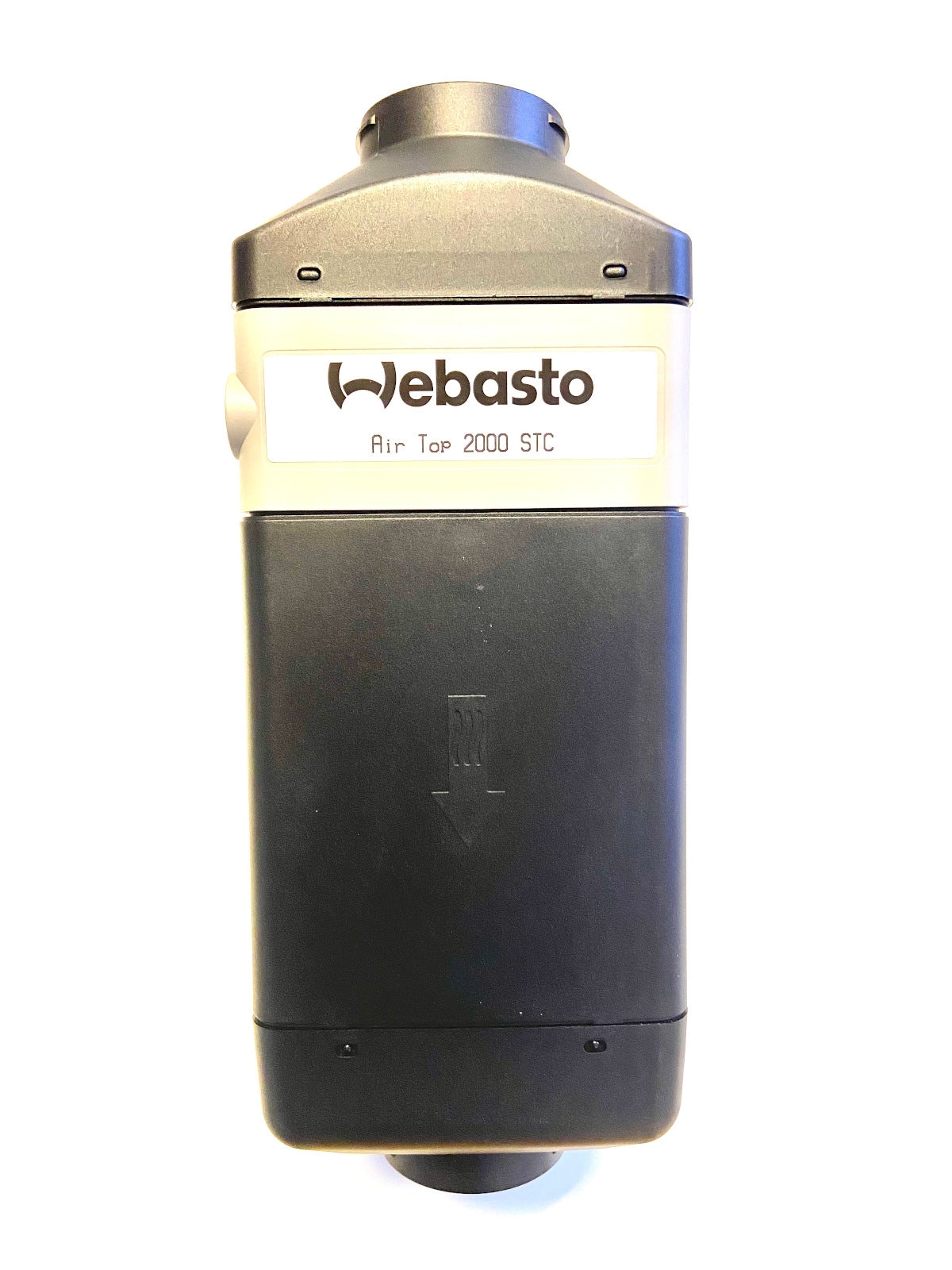

Original Webasto air heater:

- Air Top 2000 STC - 12 Volt - Diesel - Production 2022 - Article number: 9032228B

- Standard installation kit - Article number: 9032244A

- Rotary control - Article number: 1322581A

The Air Top 2000 STC Diesel air heater impresses with its wide range of applications and low fuel consumption. Thanks to its compact design, it can be installed quickly. It can be installed either inside or outside the vehicle. The heater heats the air in the vehicle interior or cargo area quickly and quietly and constantly maintains the desired temperature. The user can choose between recirculation or fresh air operation. Thanks to its maintenance- and service-friendly design and low fuel consumption, the Air Top 2000 STC is cost-effective to maintain.

Advantages:

- 2 kW heating output

- Robust heater with compact dimensions and low fuel consumption

- Fast heating times

- even more even and quieter heating process by using the fuel pump DP 42

- Maintenance and service friendly

- capable of diagnosis

- Full W-Bus compatibility of the heater

Technical data:

Heating output, control range (kW): 0.9 – 2.0

Fuel consumption, control range (l/h): 0.12 – 0.24

Nominal voltage (volts): 12

Heating air volume flow against 0.5 mbar, control range (m3/h): 93

Fuels: Diesel DIN EN 590, biodiesel DIN EN 14214, HVO DIN EN 15940

Operating temperature range (°C): –40 to +40

Dimensions L x W x H (mm): 311 x 120 x 121

Weight (kg): 2.6

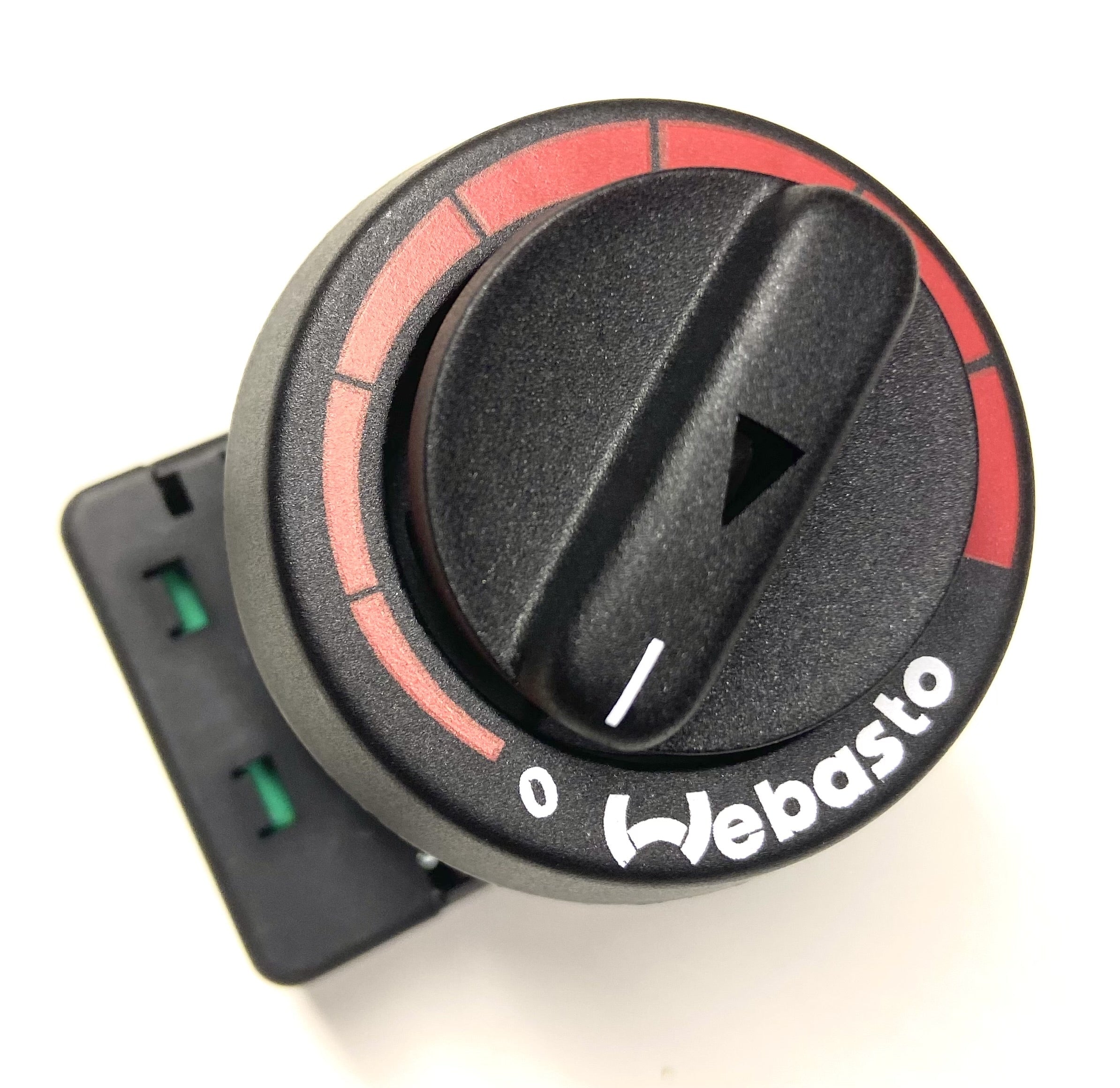

Webasto rotary control / rotary selector:

- 12/24 volts

- with lighting

- aperture diameter 49 mm

- Installation depth including plug: 55 mm

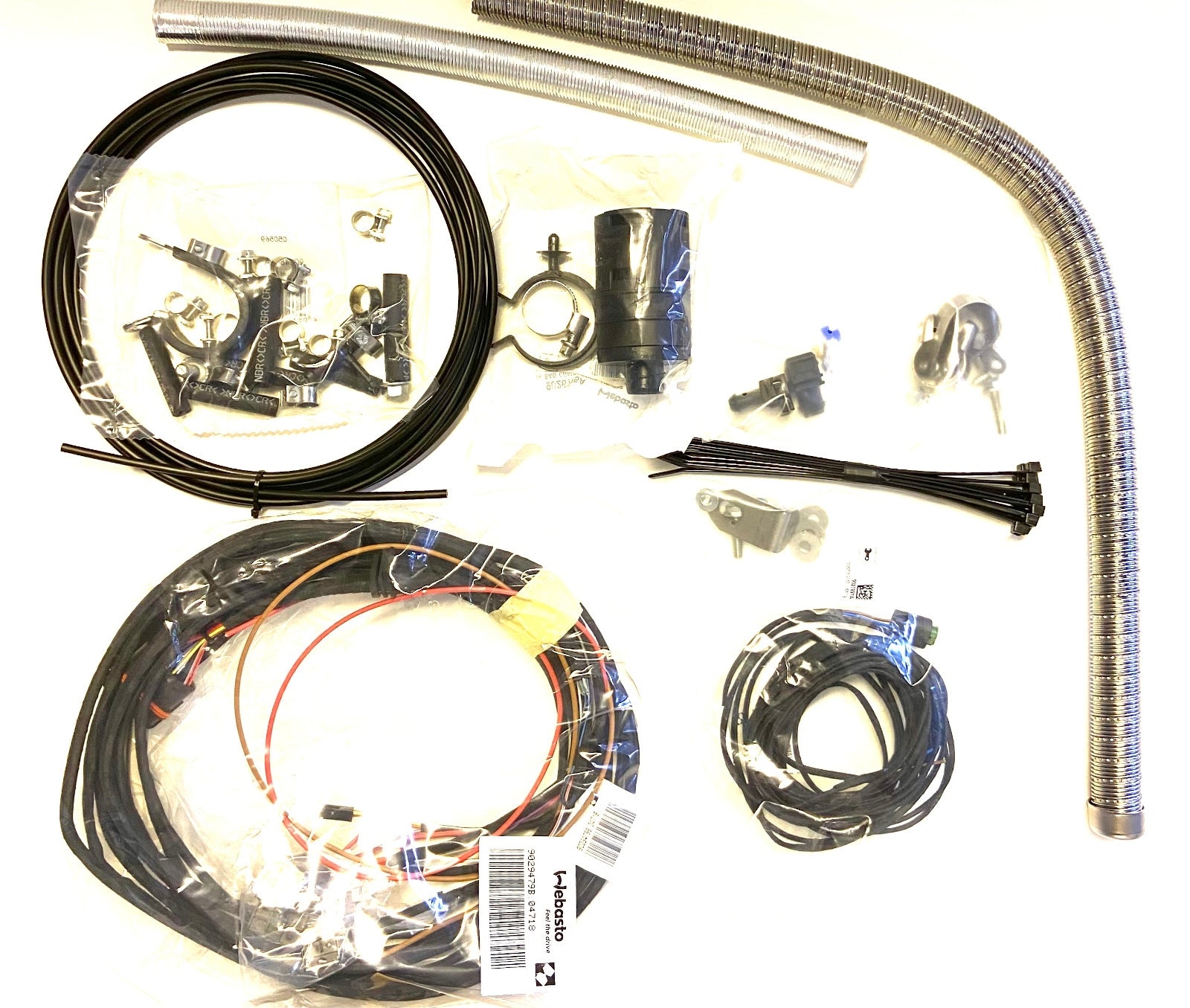

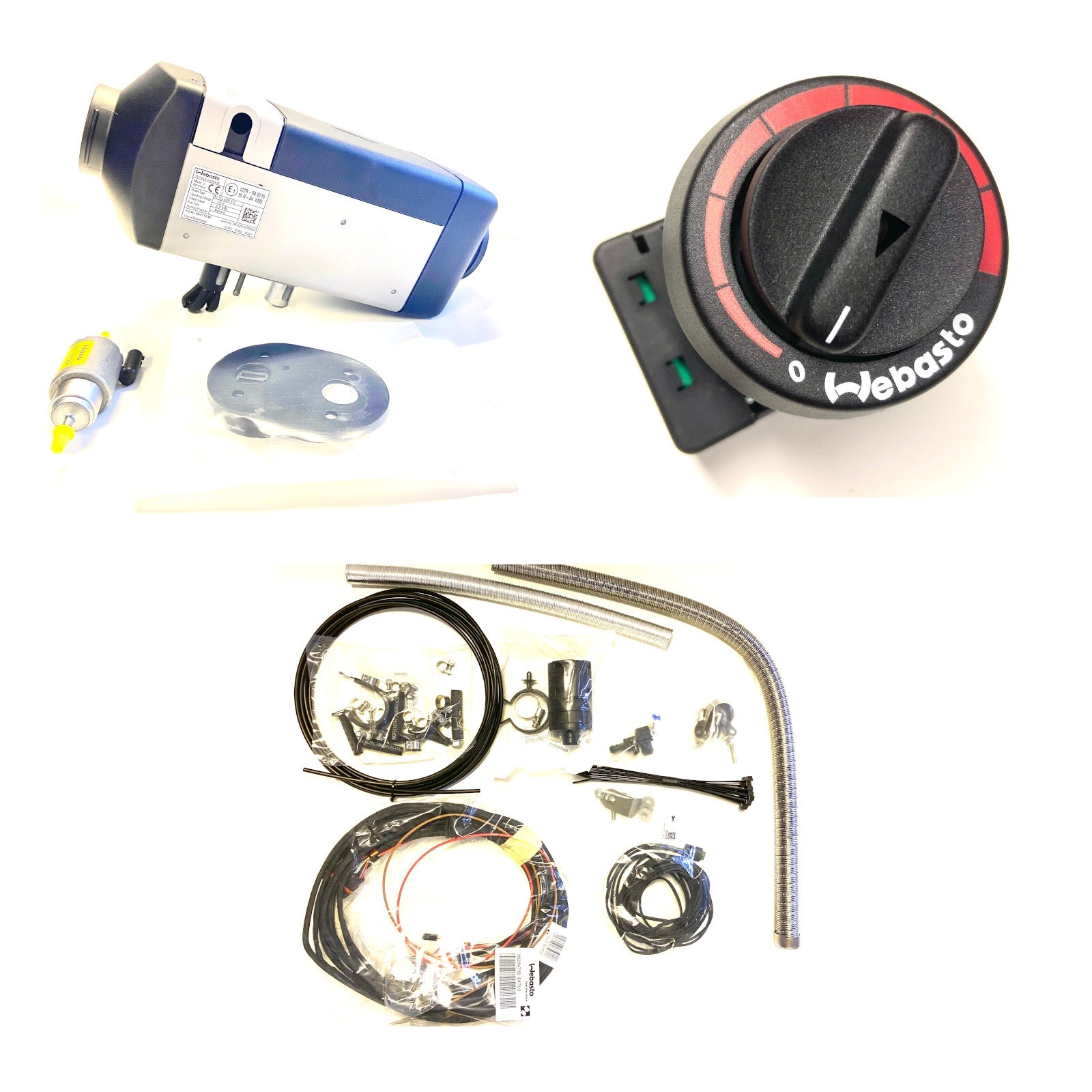

Total scope of delivery:

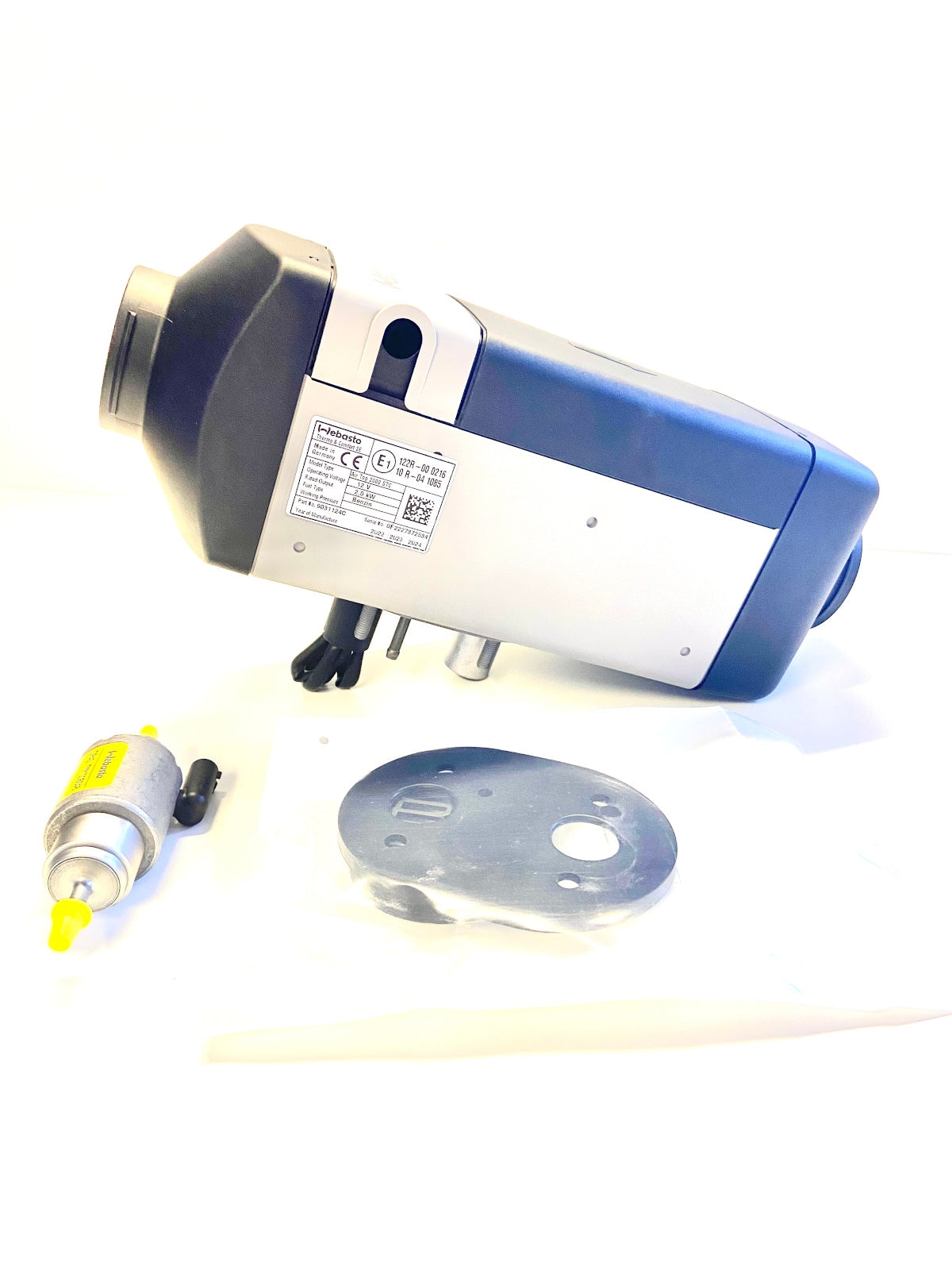

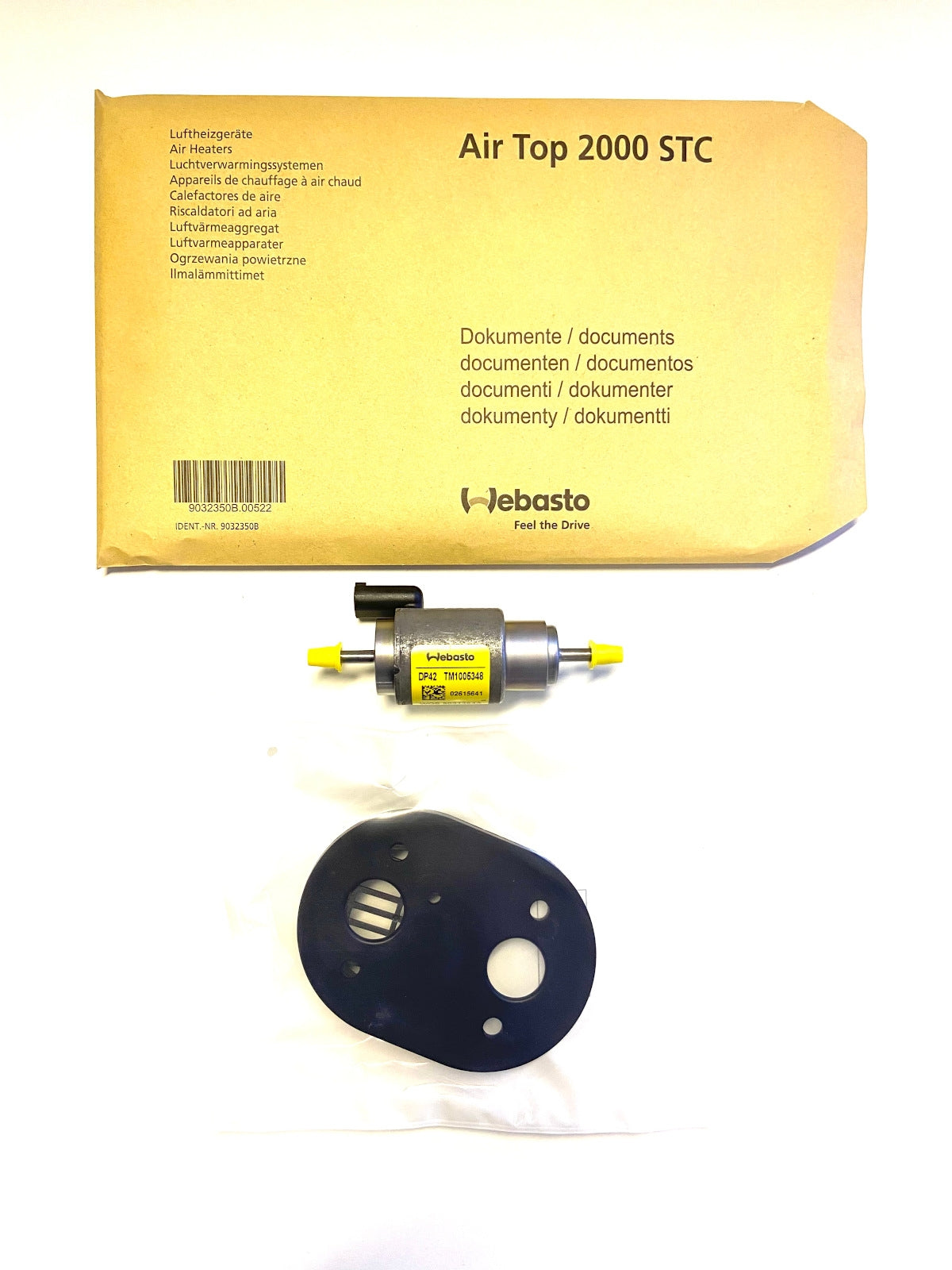

- Heater, fuel pump DP 42, grille, base seal

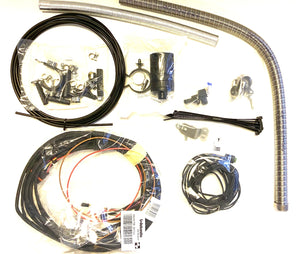

- Wiring harness for heater, wiring harness for fuel pump, fuel hose (Da: 5 Di: 2 Length: 6000mm), stainless steel exhaust flexible pipe (diameter 22, length: 700mm), PAK combustion air flexible pipe (Di 22 / length: 800mm), fuel extractor, water separator for combustion air

- rotary control

Depending on the installation project, optional parts may be necessary.
