ATTENTION: No compatibility with factory-installed (car manufacturer) auxiliary heaters and parking heaters!

Compatible only for retrofitted parking heaters!

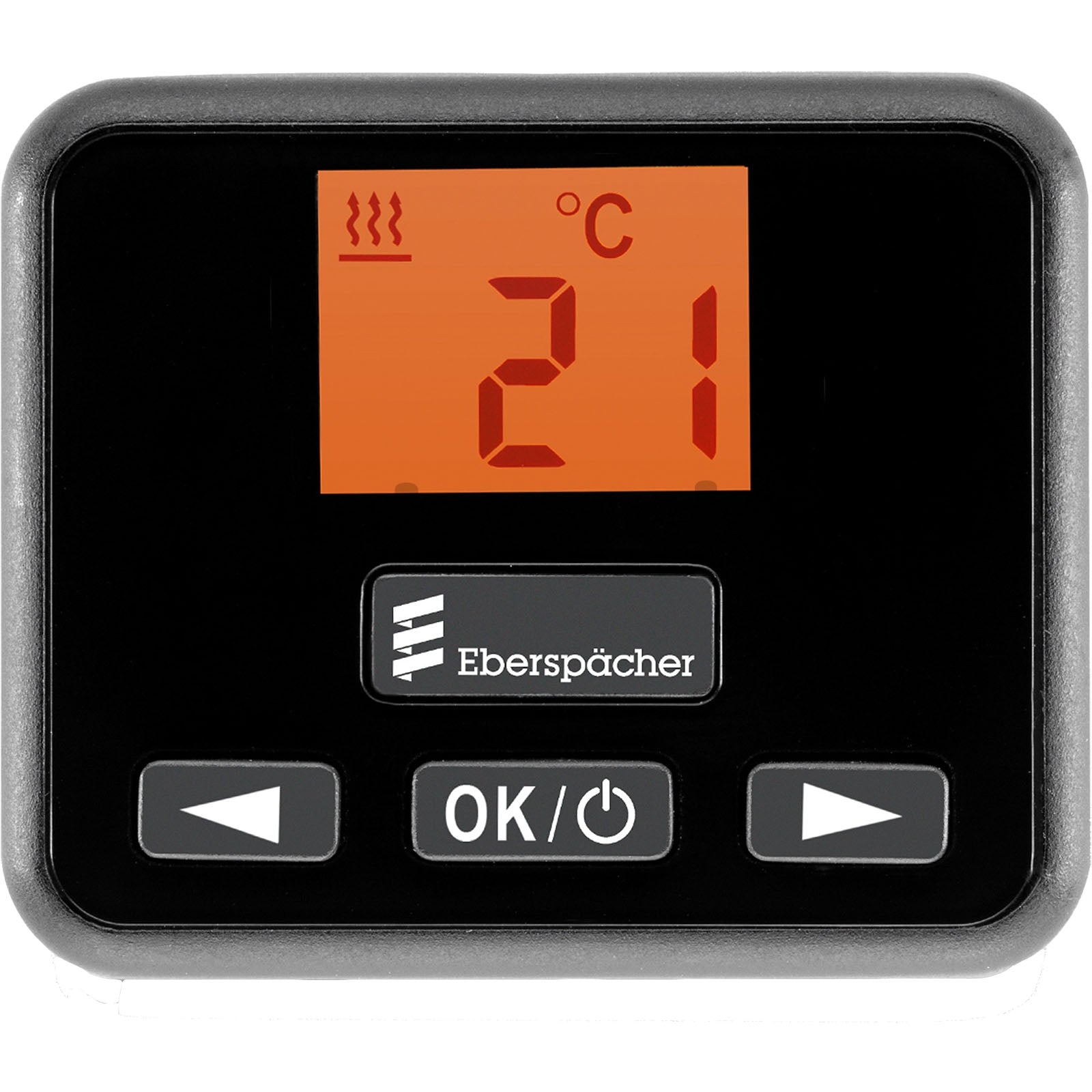

Eberspächer basic control element EasyStart Select 22.1000.34.1300

- for water and air heaters manufactured from mid-2008 or H-KIT marking on the heater's type plate

- complete retrofit kit

- no pre-select time entry possible

Purpose of use:

The EasyStart Select is used to select the operating mode, to set the operating time, and to switch the heater installed in the vehicle on/off . No pre-selected times can be entered.

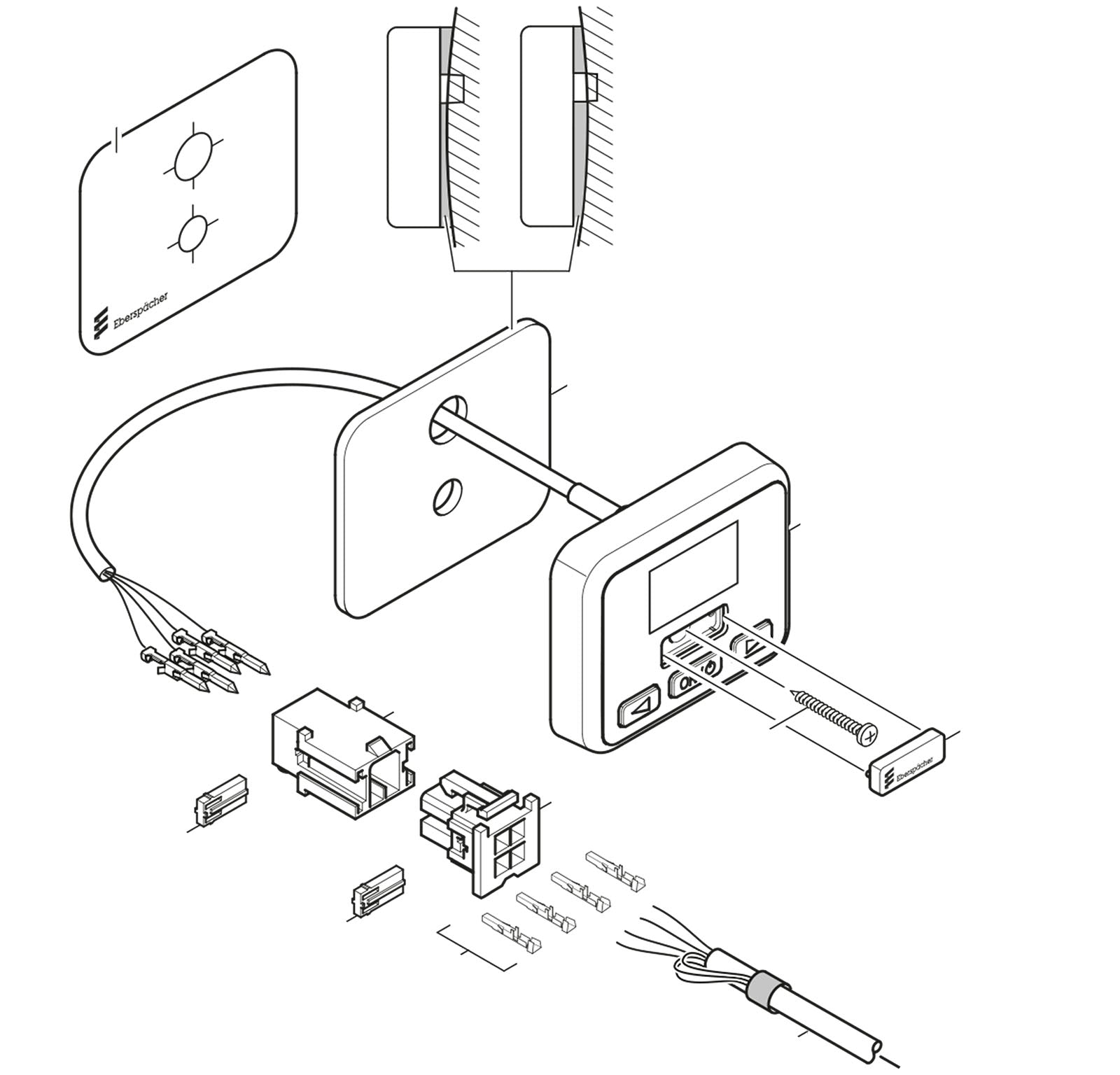

Scope of delivery:

1 EasyStart Select 12/24 volts
1 cover
1 foam pad
1 connector housing, 4-pin (in bag)
1 socket housing, 4-pin (in bag)
2 contact fuses (in the bag)
4 contacts (in the bag)
1 self-tapping screw (in the bag)
1 stencil
1 installation instructions
1 operating manual

Technical data:

Operating voltage: 12 Volt / 24 Volt
Dimensions: W: 55 mm, H: 46 mm, D: 9 mm
permissible ambient temperature: – 40 °C to + 85 °C
LCD ambient temperature: The display becomes sluggish at temperatures below -10 °C, ie the blinking sequence of the symbols is somewhat slower, the contrast becomes weaker at temperatures above +70 °C.
