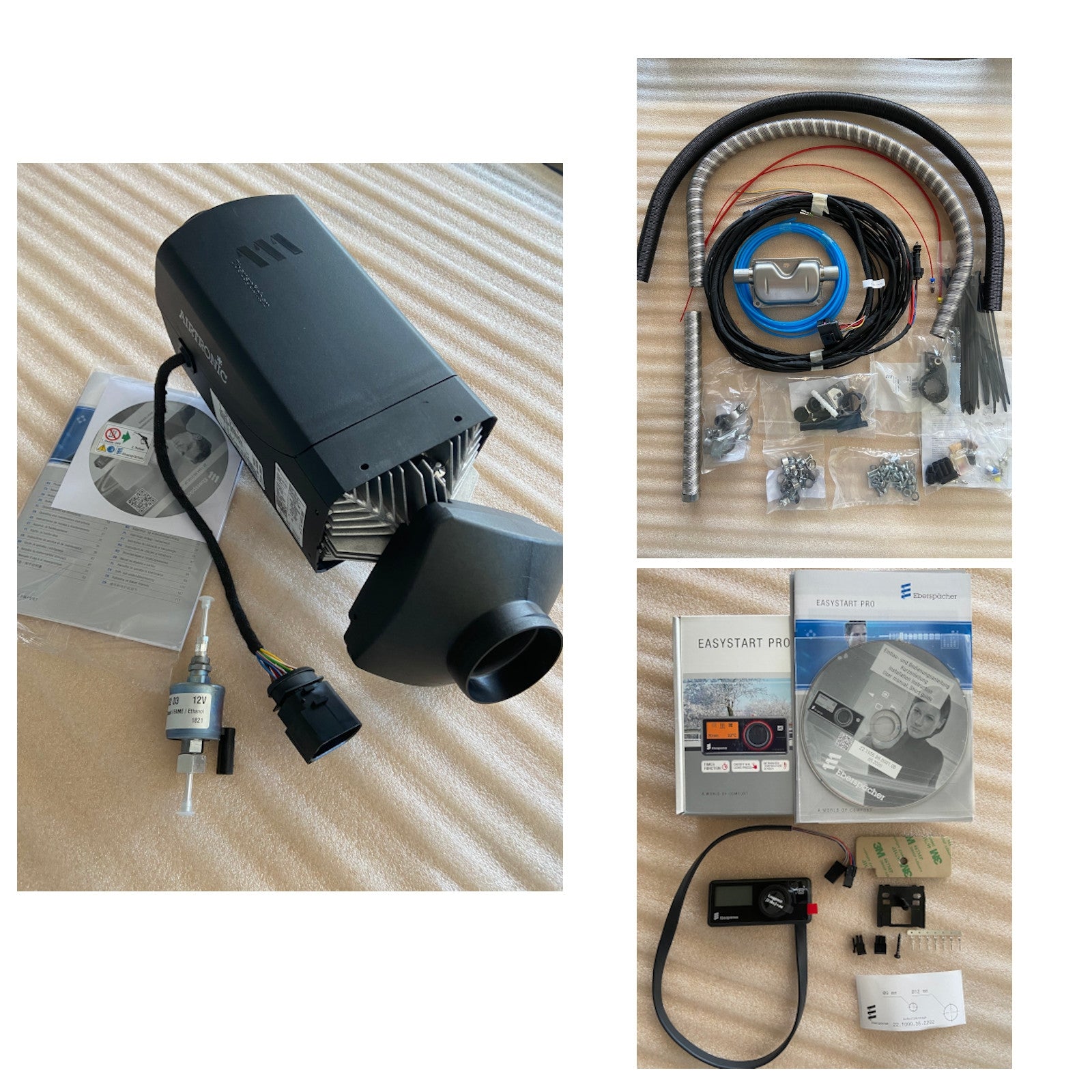

Scope of delivery:

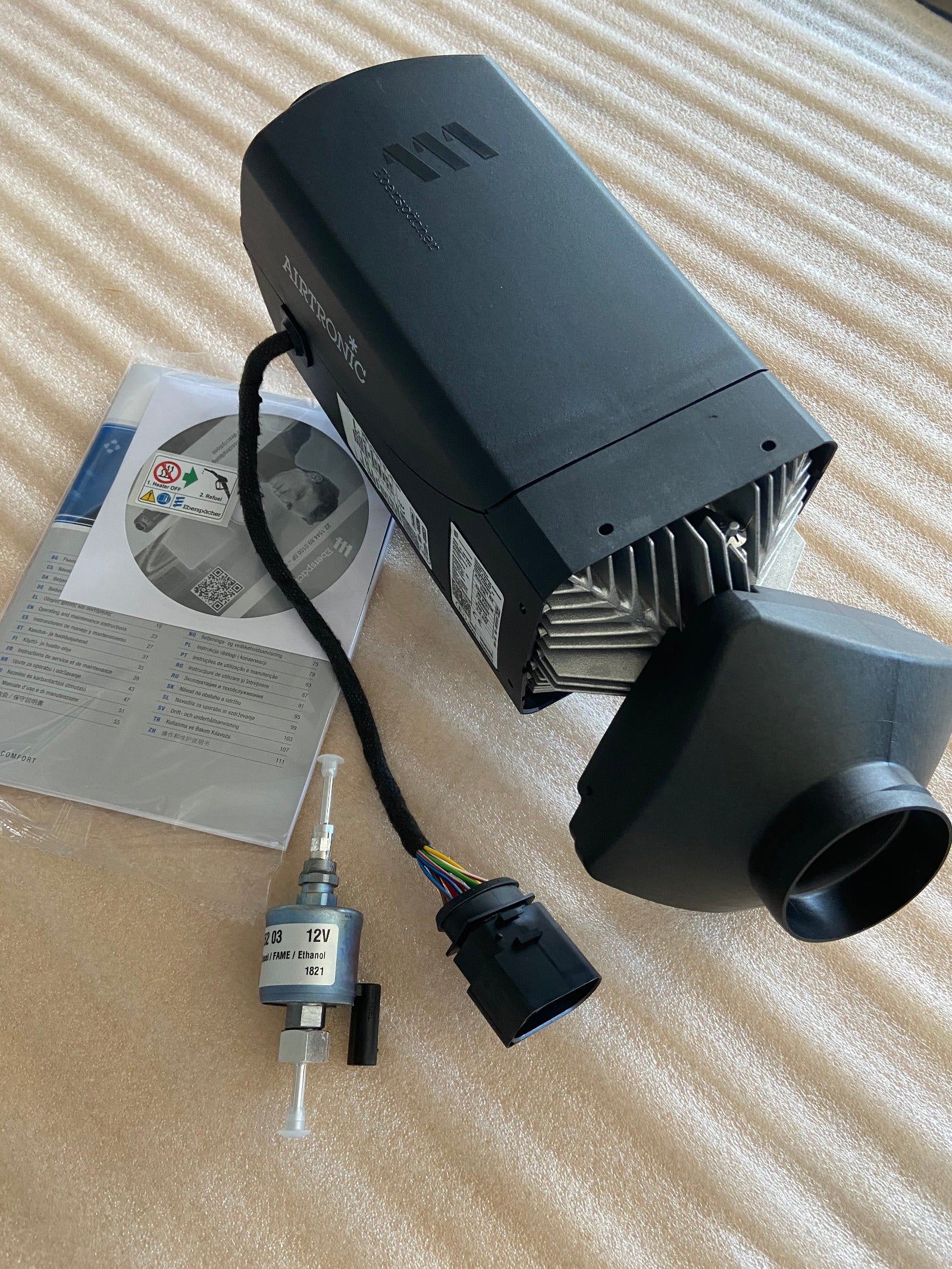

- Air heater Airtronic M2 D4L (diesel) Commercial 12 volt with diesel pump 25.2720.05.0000

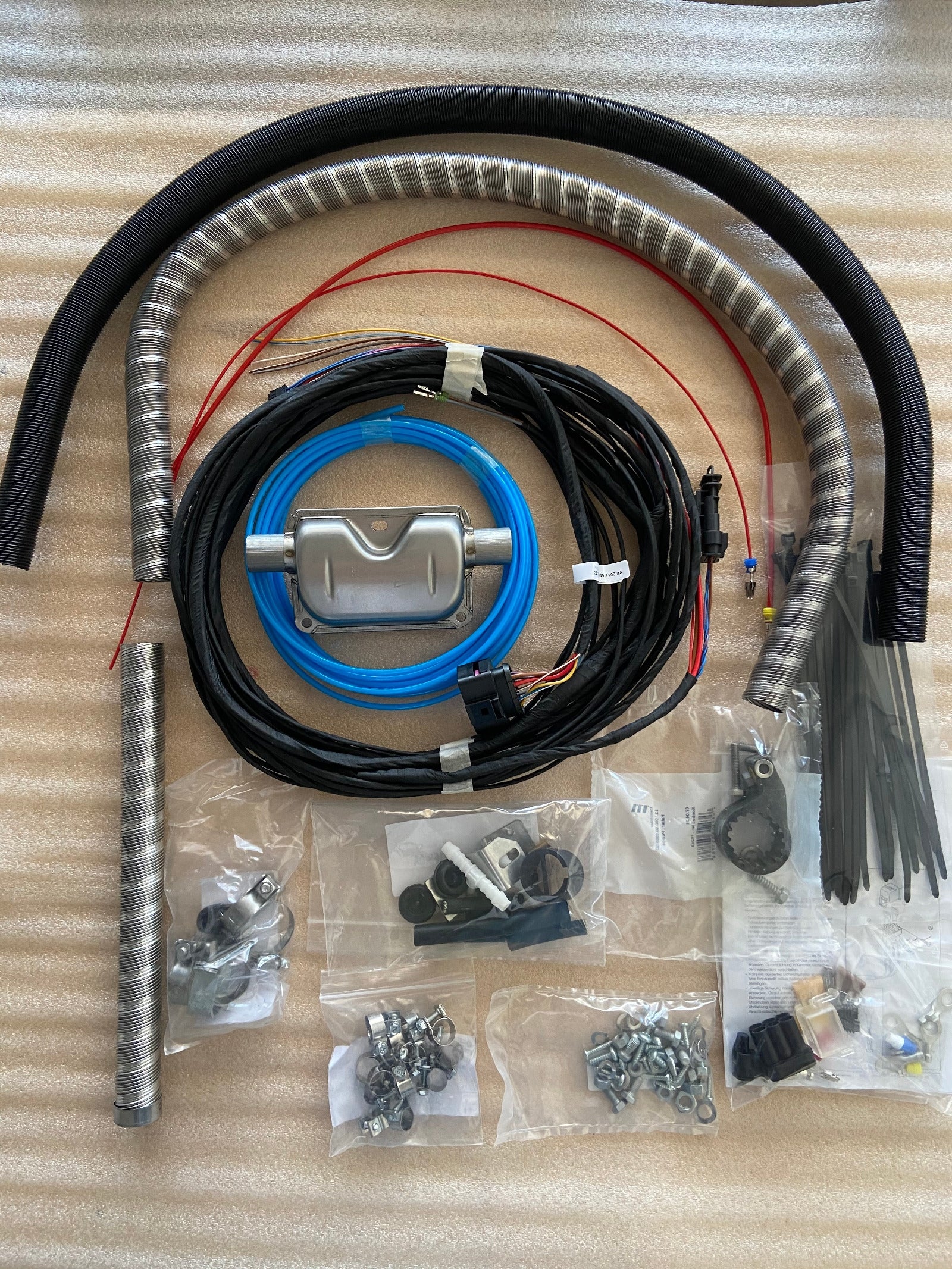

- Universal installation kit 25.2720.80.0000

- Control element timer EasyStart Pro 22.1000.35.2200

- Air scoop 90mm connection

Powerful, compact, second-generation fuel-operated (diesel) air heater with 4 kW heating output for heating driver's cabs in commercial vehicles, vans, minibuses, mobile homes as well as motor and sailing yachts up to approx. 35 ft. boat length.

Your Airtronic advantages:

- Very quiet night operation thanks to dynamic, stepless heating output control and use of the new, low-noise dosing pump

- Automatic altitude adjustment function up to 3,000 m through integrated altitude sensor, additional altitude kit not required

- Increased service life of up to 5,000 hours thanks to the brushless motor

- Extremely fast heating of the room air through power level

- Direct heat and efficient operation: Unlike a standard combination heater, the domestic water is not heated, but only the air; this guarantees a very high level of efficiency.

- Low fuel and power consumption

- Automatic room temperature control with temperature preselection

- Prevents the formation of condensation

- Fuel supply from the vehicle's own tank

- Space-saving installation possible underfloor, in the raised floor, in the seat base or in the storage box

Airtronic M2 Commercial: Output 4,000 watts, air flow with 75 mm or 90 mm air hoses possible (90 mm hood included in delivery), for vans, trucks of appropriate size, advantage of high performance with acceptable installation space, wide range from 900 watts to 4,000 watts.

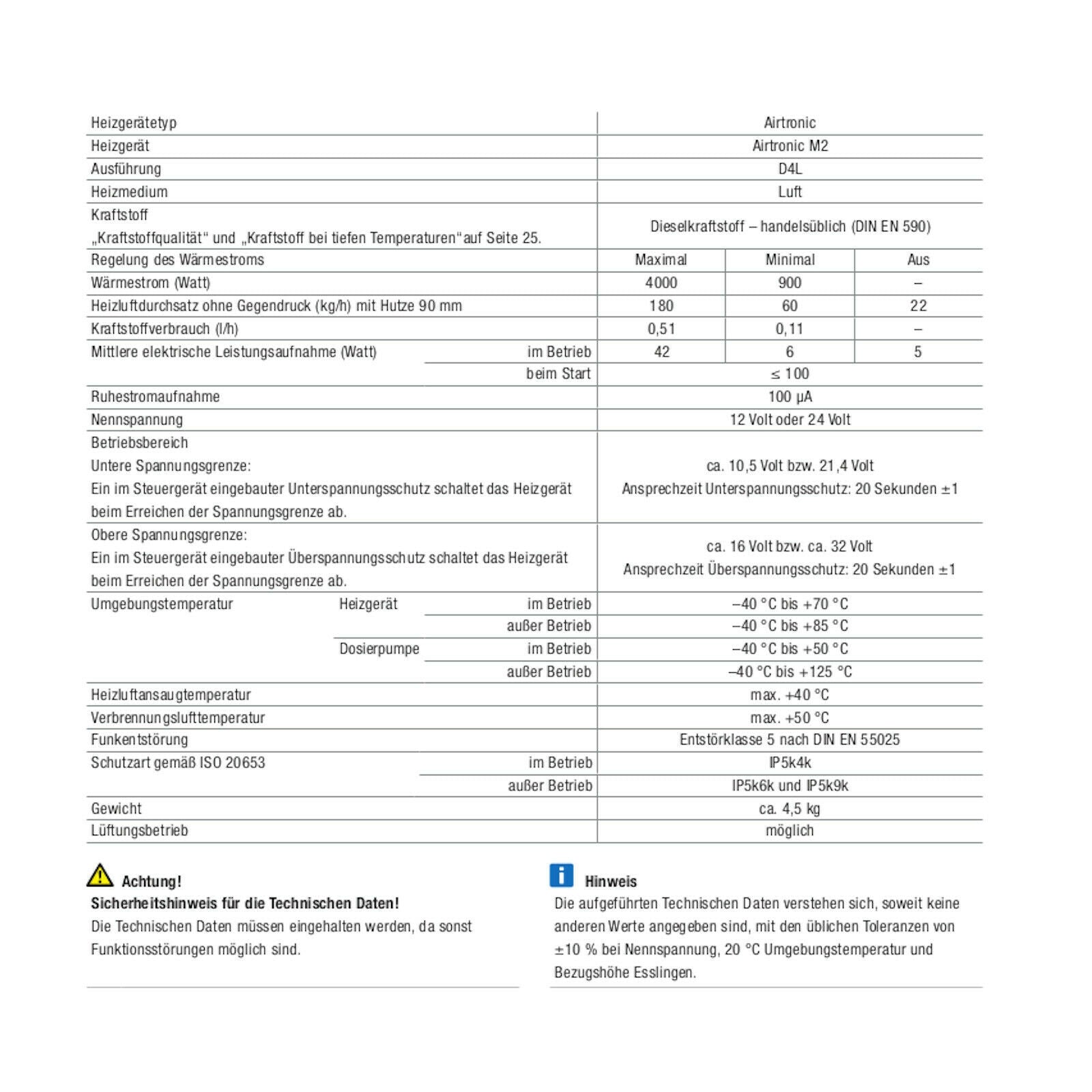

Technical data for the heater : see above in the picture gallery

Functional description Airtronic:

Combustion air is transported into the combustion chamber by means of a blower motor and wheel. Fuel is taken from the vehicle's own tank. Fuel is transported into the combustion chamber by means of the metering pump. The glow plug vaporizes this fuel when it enters the combustion chamber and a combustible fuel-air mixture is created with the combustion air. When a flame is formed, the glow plug (or the glow filament plug) is switched off, the heat is transferred to the heating air via the heat exchanger and the exhaust gas is discharged through the exhaust silencer. The blower motor and heating air wheel transport cool heating air into the heater, heat it up via the heat exchanger and then blow it into the vehicle interior.

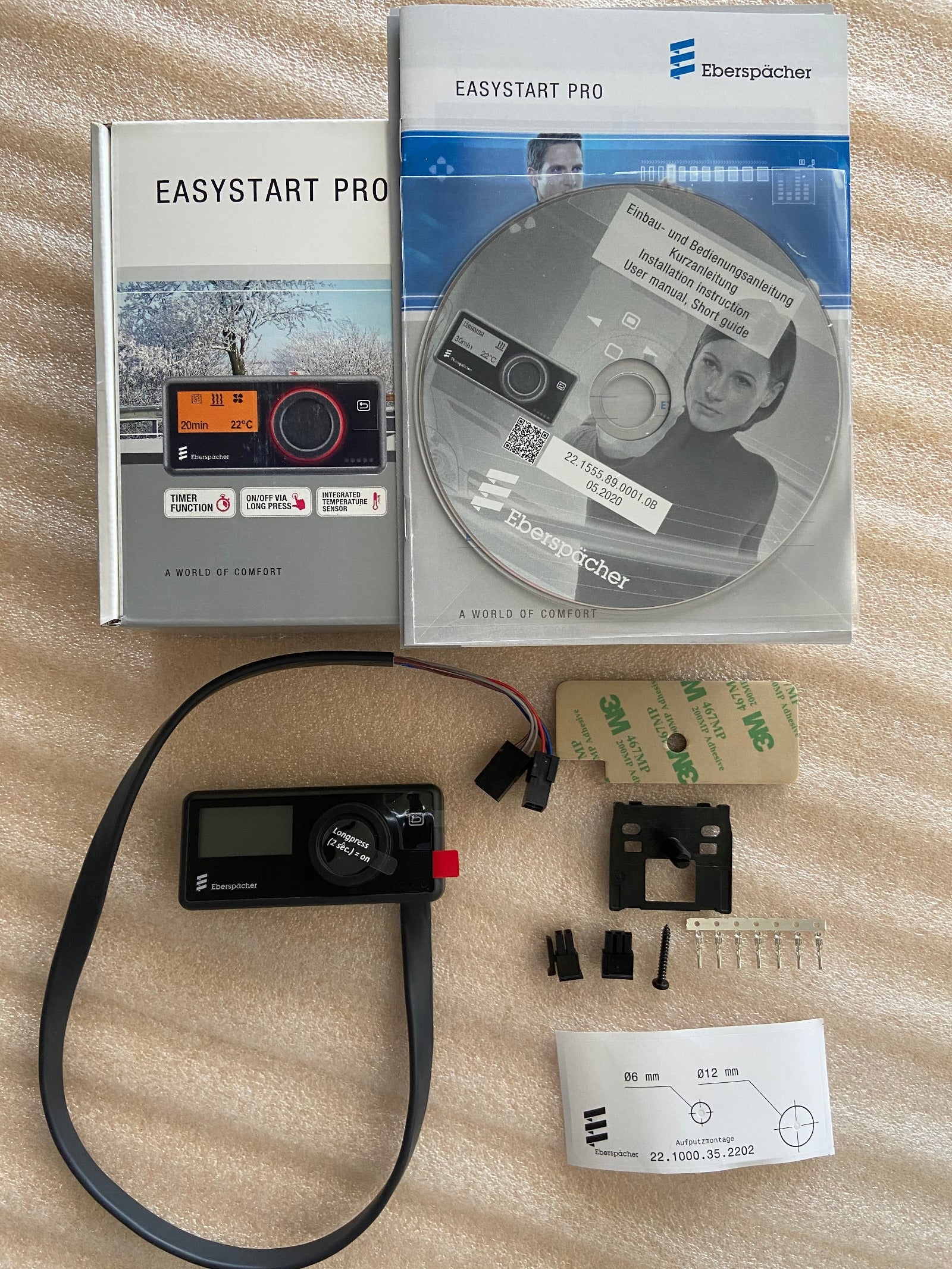

The EasyStart Pro timer control element sets the new standard for the Eberspächer control element family. In addition to a timer function (up to three program slots can be set), the EasyStart Pro is equipped with many practical product features:

- Permanently installed control element with integrated temperature sensor

- Simple operation, high-quality design and intuitive operation via just one control button

- Operation of up to two heaters separately or of two identical heaters (Airtronic or Hydronic) in a group

- Simple diagnostic function in text form for users

- Integrated residual heat function for hydronic heaters: efficient heating mode by using the residual heat of the engine

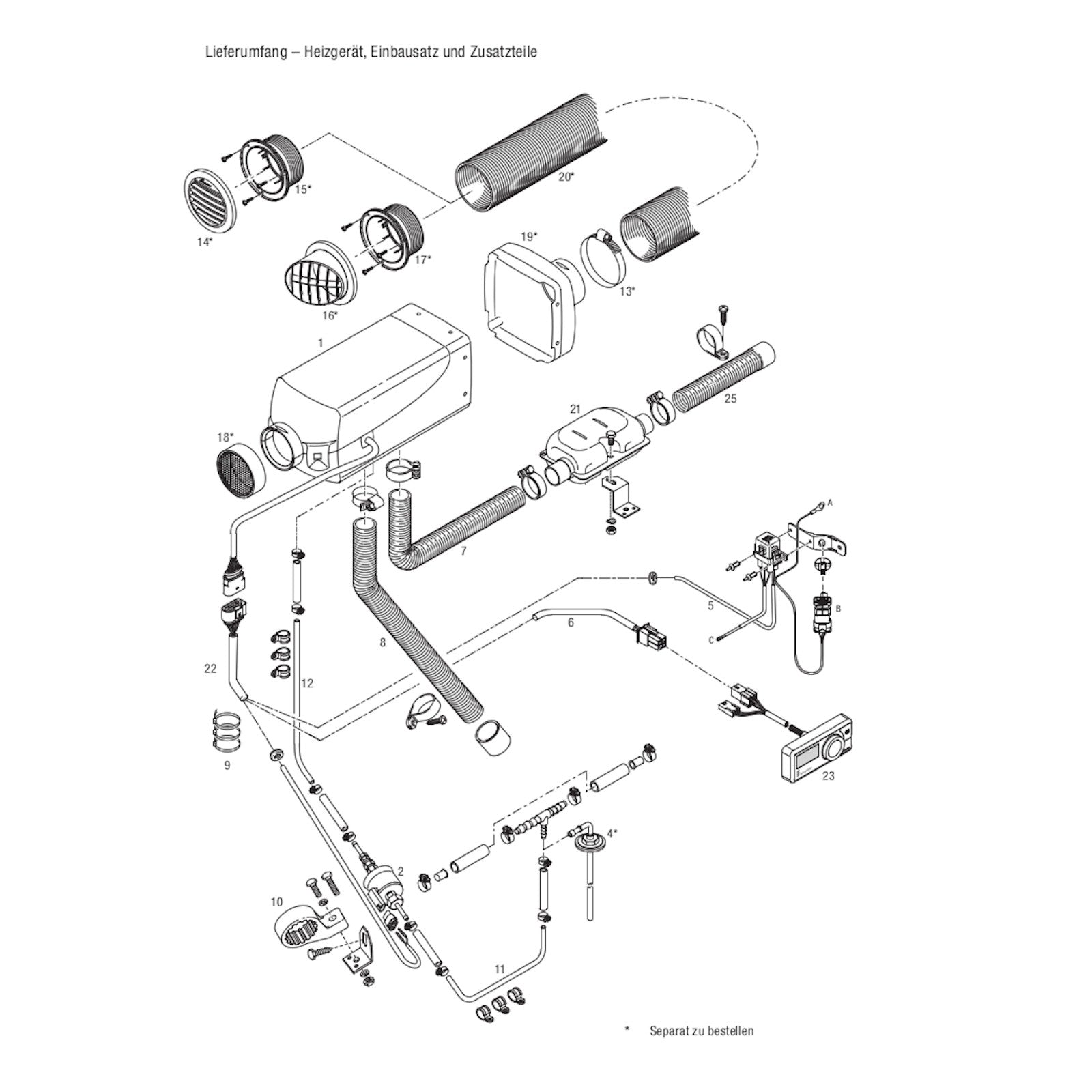

The Eberspächer scope of delivery includes the following picture number: see picture above:

1 heater Airtronic M2, D4L, 12 Volt

2 fuel metering pump

5 Cable harness for plus / minus (included in item 22)

6 Wiring harness for operation (included in item 22)

7 Flexible exhaust pipe, length 900 mm

8 combustion air hose, 1 m long

9 cable ties (2 x 10 pieces)

10 holders for dosing pump

12 tubes, 4 x 1.0 - 7.5 m long

19 hood 90mm

21 exhaust silencers

22 Wiring harness for heater

25 Flexible exhaust pipe with end piece

Depending on the installation project, the following items must be ordered separately :

Image number see image above with (*):

4 fuel extractors

13 hose clamp (1x)

14 outlets

15 nozzles

16 outlets

17 nozzles

18 grids

20 Flexible pipe
