Please check the Eberspächer number on your old device before purchasing. This must be identical to ensure compatibility.

New, originally packaged item from constantly current production:

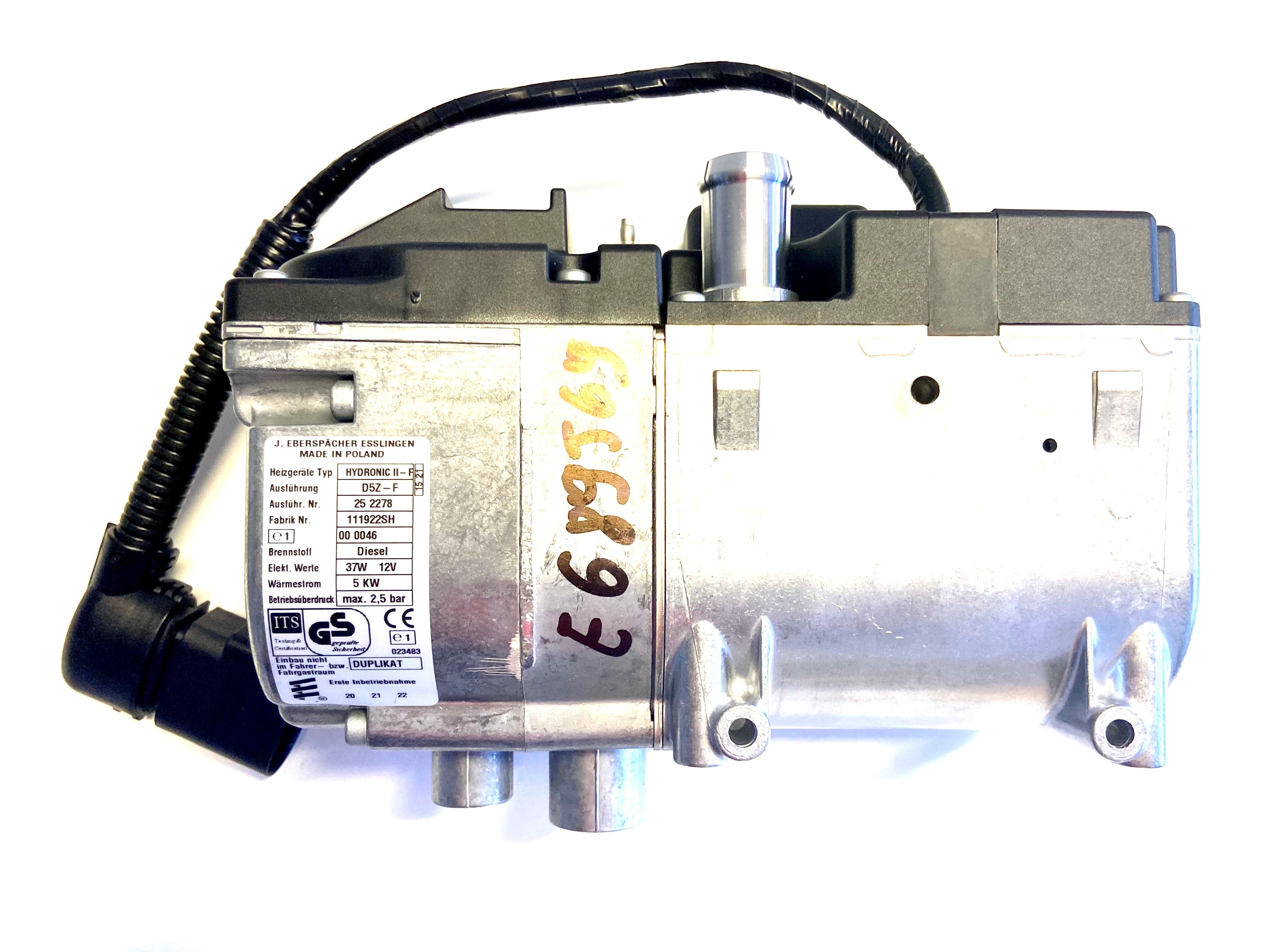

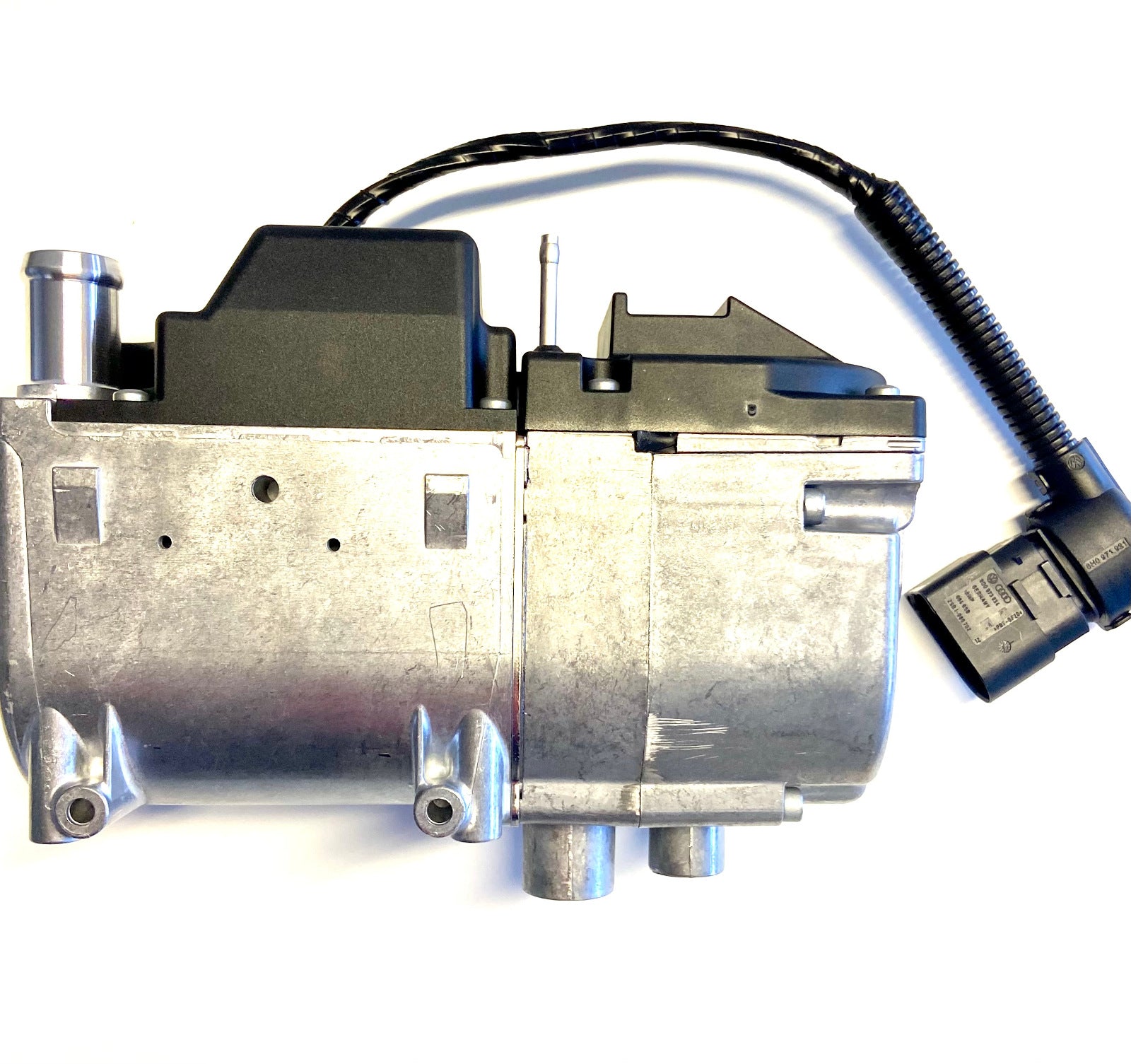

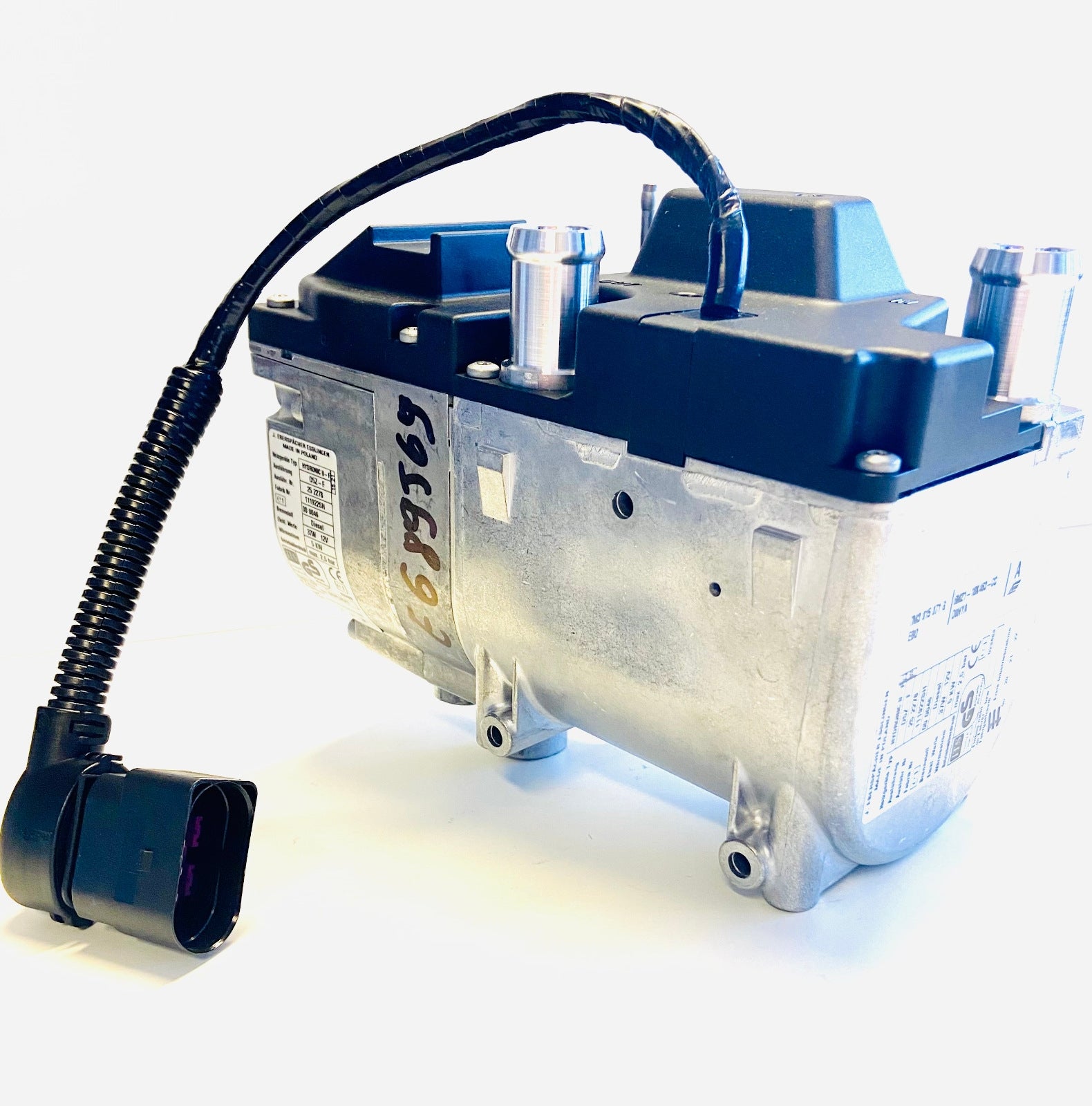

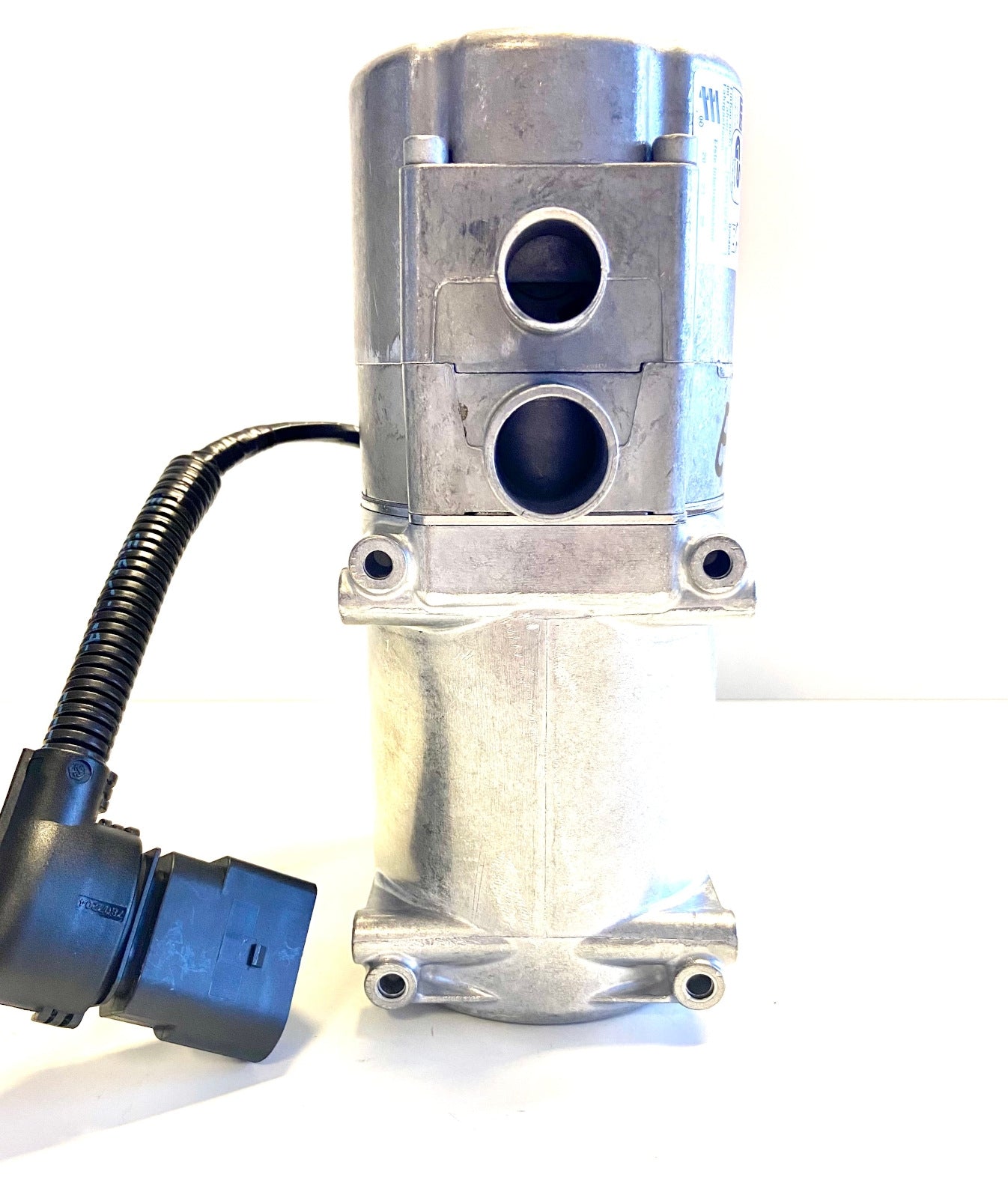

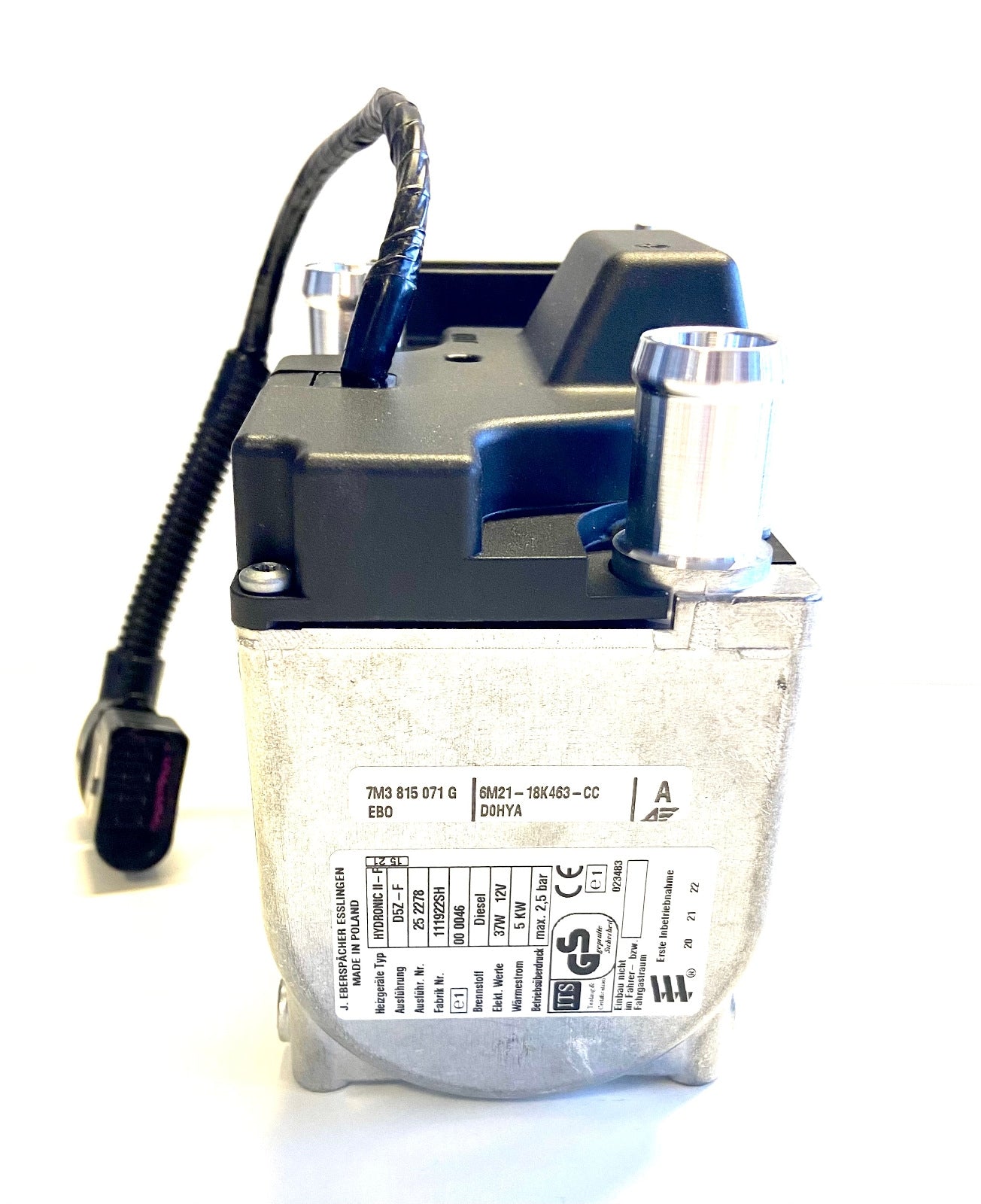

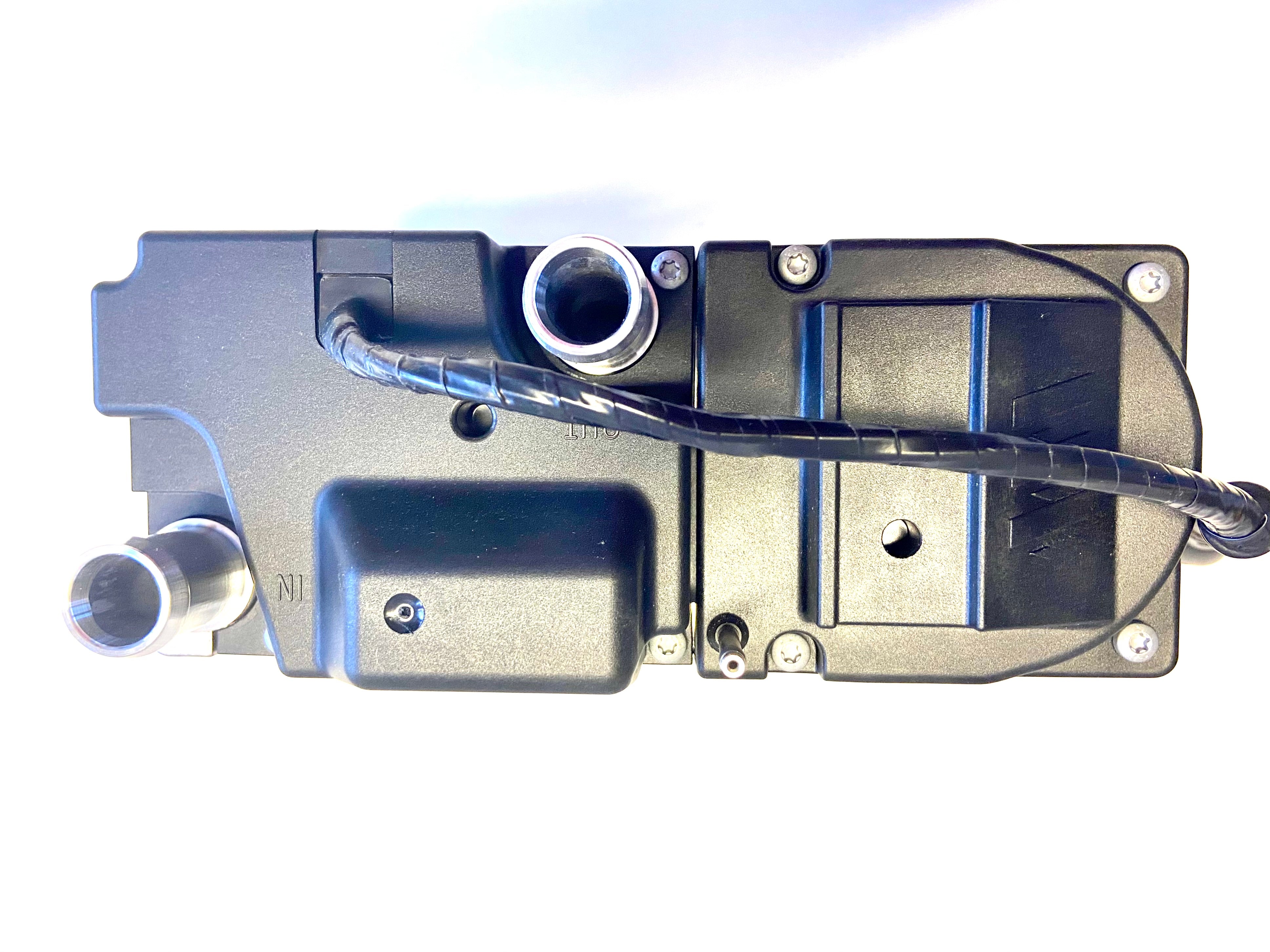

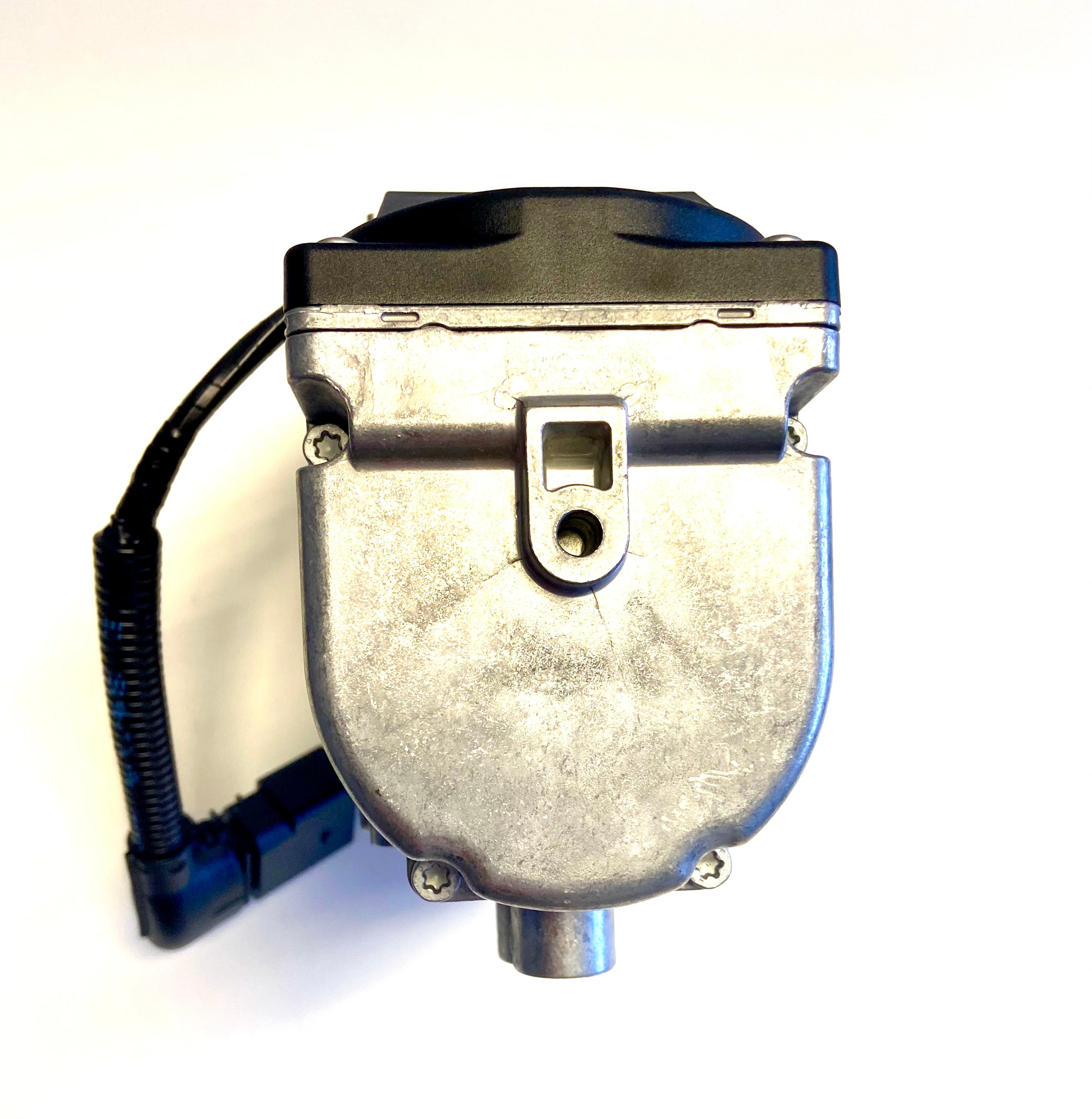

Eberspächer auxiliary heater / replacement heater Hydronic II D5Z-F 252278 05 00 00 - 12 Volt for VW Sharan / FORD Galaxy / Seat Alhambra

Eberspächer model number: 25 2278

VW number: 7M3815071G

from model year 2004

1.9 L / TD / pump-nozzle

66 kW / 85 kW / 96 kW

Technical data:

Heating medium: water

Fuel: Diesel - commercially available, DIN EN 590; PME - only in a 50/50 mixture with diesel

Standard levels: Large / Small

Heat flow: 5000 / 2300 watts

Fuel consumption: 0.63 / 0.27 l/h

Nominal voltage: 12 volts

Operating range: 10.2 to 16 volts

• Lower voltage limit: Response time - undervoltage protection: 20 seconds. An undervoltage protection built into the control unit switches off the heaters when the voltage limit is reached.

• Upper voltage limit: Response time - undervoltage protection: 20 seconds. An overvoltage protection built into the control unit switches off the heaters when the voltage limit is reached.

Electrical power consumption: • at start < 110 watts • operation 37 / 15 watts • after run 13 watts

Medium throughput, heater: min. 250 l/h

Permissible operating pressure: up to max. 2.5 bar overpressure

Water volume, heater: approx. 0.3 l

Radio interference suppression level: 5 FM/SW/MW/LW

Weight approx. 2.4 kg

Ambient temperature: • Heater - in operation -40 °C to + 85 °C - without operation -40 °C to + 125 °C

We always deliver devices from current production. Returning the old part is NOT necessary.

Only to be used as a replacement heater for factory-installed (defective) HYDRONIC D5Z-F with the above model number. Not for subsequent installation. For subsequent installation, please use a universal auxiliary heater!

Scope of delivery: - as shown in the photo - without dosing pump - the fuel pump is an original car manufacturer part and can be purchased there!

The warranty period begins with the installation of the heater. Please ensure that you can provide proof of the installation date (workshop invoice, acceptance certificate, etc.).

To attach the heater, self-tapping threaded screws are used, which are not included in the scope of delivery of the heater.
